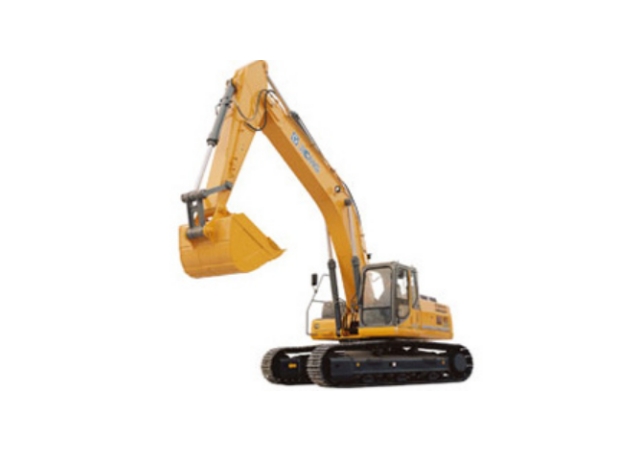

The stability and continuous output of the XCMG XE370C3 hydraulic cylinder excavator depend heavily on the condition of its bucket cylinder. Part number 803007119 is the original factory bucket cylinder for this 37-ton excavator. Its installation dimensions and hydraulic parameters are all matched to the machine’s standards, making it a crucial hydraulic component for heavy-duty operations. In heavy-duty conditions such as mining, earthmoving, demolition, and site leveling, the bucket’s digging force and speed of movement are determined by this cylinder.
I. Precise Adaptation Attributes of XE370C3 803007119 Bucket Cylinder
The 803007119 bucket cylinder is a custom-designed part specifically for the XCMG XE370C3 excavator, fundamentally different from generic modified cylinders on the market. The cylinder size, piston rod specifications, working stroke, mounting hole spacing, and hydraulic line interfaces all strictly adhere to the original XE370C3cylinder excavator design parameters, allowing for direct replacement of original parts without modification. The excavator cylinder is fully compatible with the equipment’s rated hydraulic pressure and heavy load, effectively preventing various malfunctions caused by model incompatibility, such as hydraulic pressure leakage, weak bucket retraction/extension, operational jamming, and machine vibration.
Meanwhile, the support structure and sealing layout of the original 803007119 hydraulic cylinder-Xcmg Excavatorparts are perfectly matched with the XE370C3 body structure, resulting in higher assembly precision and better fit. This significantly reduces the risk of oil leakage and loosening caused by assembly gaps, fully releasing the machine’s heavy-duty operation advantages and meeting the needs of normalized high-intensity construction on the site.
II. Core Technology and Performance Advantages: Specifically Designed for Heavy-Duty and Harsh Working Conditions
The 803007119 bucket cylinder-Xcmg Parts that comes with this XE370C3 excavator is made specifically for harsh working conditions on construction sites, and it is not comparable to ordinary general-purpose cylinders.
a. High-strength materials and processes, damage-resistant and durable.
The cylinder block is forged from thickened alloy steel, and the inside of the cylinder barrel is precision honed. The piston rod is hardened and hard chrome plated. When mining or excavating hard soil, the piston rod is often hit by rocks. This structure is not prone to bending or scoring the cylinder barrel and can withstand long-term heavy-duty work.
b. Multi-layered sealing protection eliminates the risk of oil leakage.
The cylinder’s interior employs multiple composite seals, along with dustproof and buffer structures. The outer dustproof ring blocks mud, gravel, and rainwater, preventing impurities from entering the cylinder for excavator; the inner seal can withstand continuous high-pressure impacts, is less prone to aging and oil leakage, and reduces downtime for maintenance during construction.
c. Optimized hydraulic circuit for high efficiency and energy saving.
The hydraulic system is specifically tuned for the XE370C3 bucket cylinder excavator, resulting in lower fluid flow resistance. Bucket opening and closing, digging and unloading responses are crisp and efficient. While providing ample digging power, hydraulic losses are reduced, leading to significant cost savings over long-term operation.
III. Common Fault Diagnosis and Key Points for Parts Replacement
In daily operation, most excavator bucket cylinder failures on XCMG XE370C3 excavators exhibit distinct characteristics. Accurately identifying the cause of the failure can effectively avoid blindly replacing parts and ineffective repairs, saving on maintenance costs. Common failures are mainly divided into three categories:
a. The bucket is weak in digging and its movement is slow.
This type of fault typically manifests as normal operation under no-load conditions, but insufficient bucket extension and retraction and digging force when digging under load. The main cause is wear of the internal seals of the hydraulic cylinder, leading to a decrease in pressure holding capacity; in some cases, the replacement parts are of the wrong model, and the hydraulic pressure parameters do not meet the design standards of the XE370C3 boom lift cylinder excavator, resulting in insufficient power output.
b. Oil leakage and seepage problems in the hydraulic cylinder
Oil stains on the piston rod surface and oil dripping from the cylinder mating surface are the most common cylinder malfunctions, mostly caused by aging or damaged seals or scratches on the inner wall of the excavator cylinders. If left untreated for a long time, this will not only cause hydraulic oil loss, but impurities in the oil circuit will also enter the main hydraulic pump, wear down precision components, damage the entire hydraulic system, and cause larger-scale equipment failures.
c. Abnormal noises and machine vibration during operation
Abnormal noise and slight vibration of the machine body during bucket retraction and extension are mostly caused by failure of the internal buffer structure of the hydraulic cylinder, or by size deviation of the replaced parts or misalignment of the installation holes, resulting in uneven force on the hydraulic cylinder-Xcmg Excavator Spare Parts and abnormal operating conditions.
If a non-standard replacement cylinder is used, it may be able to operate barely in the short term. However, the dimensional accuracy and pressure-bearing capacity of non-standard parts are not compatible with the XE370C3 excavator, and their wear rate is much higher than that of the original 803007119 excavator hydraulic cylinder. Frequent repairs and downtime will actually increase overall operating costs. Therefore, when replacing parts, the unique part number of 803007119 must be verified to ensure complete compatibility with the machine model. During disassembly and assembly, the cleanliness of the hydraulic oil should be checked simultaneously, impurities in the oil passages should be cleaned, and matching sealing kits should be replaced to ensure that the cylinder is perfectly compatible with the entire machine’s hydraulic system and provides stable output power.
IV. Daily maintenance techniques to extend the service life of hydraulic cylinders
Many premature failures of hydraulic cylinders are caused by improper operation and inadequate maintenance. Proper daily maintenance can effectively extend the service life of the 803007119 excavator hydraulic cylinders.
a. Daily pre-operation inspection: Before starting work, check the piston rod for scratches and oil leaks, and test the bucket operation under no-load. If any jamming or abnormal noise is found, do not operate the machine while it is malfunctioning to prevent minor problems from escalating.
b. Standardize construction operations and avoid using the bucket to pry or smash stones forcefully. Avoid sudden retraction and release. When encountering hard soil or rock, excavate in layers to reduce the instantaneous impact pressure on the hydraulic cylinder.
c. Clean up promptly after work. After finishing work, clean the mud, sand and gravel off the piston rod. Clean it thoroughly before retracting it into the oil cylinder to prevent sand and gravel from scratching the seals and causing oil leaks.
d. Regularly maintain the hydraulic system by replacing hydraulic oil and filter elements periodically, checking oil level and quality regularly, keeping the oil circuit clean, and reducing wear on cylinder walls and seals.
The 803007119 bucket cylinder is a core original component for the XCMG XE370C3 excavator. While the quality of various generic replacement cylinders on the market varies greatly, this cylinder is custom-made for the XE370C3 machine in terms of installation dimensions, material strength, and hydraulic matching. It can withstand heavy-duty construction sites such as mines, earthmoving, and infrastructure projects. Its robust forging process and reliable sealing structure ensure sensitive cylinder response, improving common problems such as weak bucket power, sluggish operation, oil leaks, and repeated repairs. Choosing the original 803007119 cylinder-Xcmg Excavatorparts for repairs and replacements, along with proper routine maintenance, will reduce malfunctions, downtime, and maintenance costs, ensuring the XE370C3 operates stably and projects progress smoothly.
