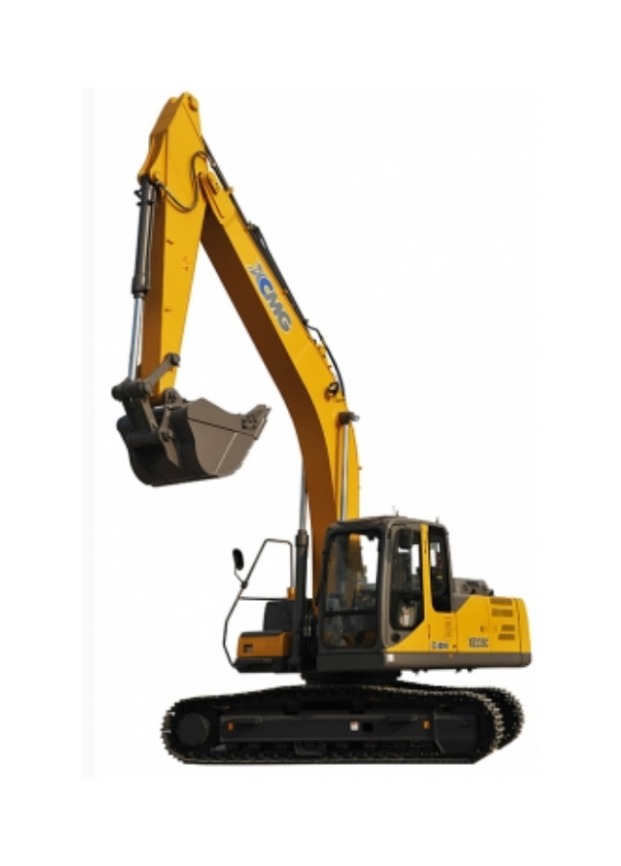

The XCMG XE235G is a mainstay model of 23-ton mid-sized engineering excavators. With its reliable hydraulic control system, powerful digging capabilities, and wide adaptability to various working conditions, it is widely used in various construction scenarios such as municipal engineering, earthwork excavation, site leveling, river management, and light mining operations. The 803086433 left boom cylinder, as a core original hydraulic component of the XE235G excavator, is a key actuator controlling boom lifting, material hoisting, and boom hovering, directly determining the excavator’s operational stability, smoothness, and heavy-load capacity.
I. Compatibility Instructions for Model 803086433 Left Boom Cylinder
803086433 is the only original factory-specific model of the left excavator boom cylinder for the XCMG XE235G excavator. It is perfectly matched to the machine’s hydraulic system, pipeline pressure, and installation dimensions, and cannot be interchanged with cylinders from other tonnage models in the same series. This cylinder works in conjunction with the right boom cylinder to be responsible for the hydraulic drive of the entire boom, undertaking core tasks such as heavy digging, material lifting, and boom stabilization. Compared to commercially available aftermarket cylinders, the original factory 803086433 left boom cylinder-Xcmg Excavatorparts has been calibrated for the entire machine’s operating conditions. Its mounting holes, pipe interfaces, stroke parameters, and pressure standards are perfectly aligned with the XE235G’s overall design, requiring no secondary processing or modification. After replacement and installation, the original operating performance of the equipment can be quickly restored, effectively avoiding safety hazards such as pressure leakage, vibration, sluggish movement, and pipe rupture caused by incompatible parts.
II. Original Factory Core Parameters and Process Structure Advantages
Adapted to the XE235G construction load standard, the 803086433 left boom cylinder on excavator adopts a heavy-duty hydraulic design for medium-sized excavators, with a standard cylinder diameter of 125mm, rod diameter of 85mm, and effective stroke of 1320mm. It matches the rated working pressure of the whole machine, with stable and sufficient pressure output and strong load-bearing capacity. It can easily handle high-intensity working conditions such as heavy-duty earthmoving, material lifting at heights, and auxiliary operations for hard soil breaking. Under full load, there is no power attenuation or boom sinking problem.
In terms of manufacturing process and materials, the cylinder body is integrally forged from high-strength alloy steel and reinforced through multiple heat treatments, resulting in higher overall density, superior impact resistance, deformation resistance, and compressive strength. It can withstand external force losses such as impacts from construction site gravel, high-frequency operational vibrations, and heavy-load compression. The piston rod uses a thickened base material with a double-layer hard chrome plating process, resulting in a smooth and dense surface with extremely strong wear resistance, rust prevention, and corrosion resistance. It can adapt to harsh construction environments such as outdoor exposure, muddy water, dusty conditions, and acidic or alkaline soil. The cylinder’s interior is equipped with a complete set of original factory-customized sealing components, including dust seals, wear-resistant rings, high-pressure oil seals, and buffer seals. These components provide high sealing accuracy, high pressure resistance, and resistance to aging, effectively preventing hydraulic oil leakage and preventing external dust, mud, and impurities from entering the cylinder, thus protecting the hydraulic circuit and ensuring the stable operation of the entire hydraulic system.
III. Detailed Maintenance and Usage Guidelines
The left boom cylinder (803086433)-Xcmg Excavator Spare Parts is a high-pressure, high-frequency component. Most failures are caused by improper operation and lack of maintenance. Proper maintenance can extend the cylinder’s lifespan and reduce repair costs.
A. Daily Pre-Shift Inspection and Cleaning: Before starting operation each day, a visual inspection and basic cleaning of the 803086433 left boom cylinder-Xcmg Parts is required. Pay particular attention to checking the piston rod surface for damage, scratches, rust, and hardened dirt or sand. Also check for oil seepage or leaks at the cylinder barrel, oil pipe joints, and sealing end caps. Promptly clean dirt, gravel, and dust from the piston rod surface to prevent hard particles from being introduced into the sealing components during equipment lifting and lowering, which could scratch the oil seal and cause seal failure. Simultaneously, confirm that the cylinder movement is smooth and without abnormal noise, and that the boom lifting and lowering speed is uniform without any self-diving.
B. Regular Hydraulic Oil Maintenance and Management: Hydraulic oil is the transmission and protection medium for the boom cylinder, and its quality directly affects the cylinder’s lifespan. Strictly adhere to the XE235G machine’s maintenance cycle, regularly replacing the hydraulic oil and filter elements to keep the oil circuit clean and unobstructed. Do not use inferior, deteriorated, incorrectly viscous, or excessively contaminated hydraulic oil. Long-term contamination of the oil will cause wear on the cylinder’s internal bushings, blockage of the oil circuit, and valve jamming, leading to cylinder pressure loss, weak operation, and other malfunctions. Furthermore, regularly check the hydraulic oil level in the tank to ensure it is sufficient and prevent air intake, which can cause cylinder vibration and abnormal noise.
C. Standardized Operating Procedures: Improper operation during construction is the main cause of boom cylinder damage. During operation, avoid rapid lifting and lowering of the boom, sudden raising and lowering, and impact under load, etc., to reduce the impact of instantaneous high-pressure peaks in the cylinder and prevent fatigue aging of seals and deformation of the cylinder body. At the same time, prohibit prolonged overload lifting, forced material pushing, and pressure-holding operations to avoid the left boom cylinder excavator manufacturers (803086433) being under extreme pressure for extended periods, reducing the risk of internal leakage and structural damage. In hard soil, gravel, and crushing conditions, minimize single-point pressure on the boom, distribute the load evenly, and protect the stability of the cylinder structure.
IV. Precautions for Parts Selection and Replacement
When replacing parts, always verify the model number **803086433**. Do not use non-standard or refurbished parts. Inferior hydraulic cylinders, with substandard materials and parameters, are prone to oil leaks and deformation, and can also damage valuable components such as hydraulic pumps and distribution valves, leading to higher maintenance costs. Original factory hydraulic cylinders have precise dimensions and meet pressure requirements, fully adapting to various operating conditions of the XE235G and ensuring stable equipment operation.
The 803086433 left excavator boom cylinder is a core, easily damaged, and heavy-duty component of the XCMG XE235G excavator. Its operating status directly affects the machine’s operational efficiency and construction safety. Regular inspections and maintenance, timely troubleshooting of minor faults, and replacement with genuine, compatible parts are crucial for reducing equipment failure rates, saving on maintenance costs, and improving construction efficiency.
