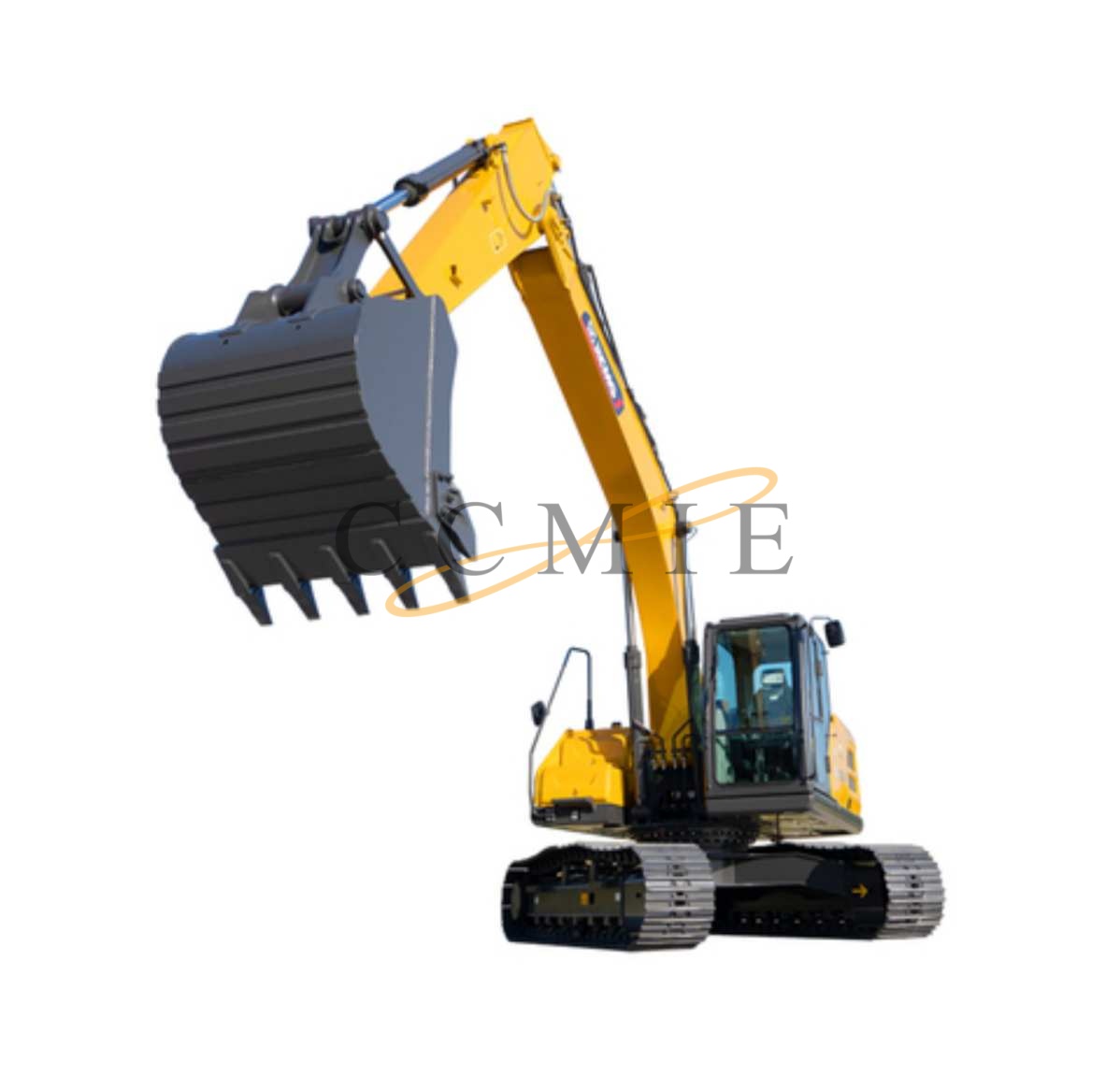

In the complete hydraulic operating system of the XCMG XE135C medium-sized excavator, the boom cylinder is a core component that controls the boom’s movement and transmits hydraulic power, directly determining the machine’s operational smoothness, digging force, and construction stability. The 803007224 boom cylinder(Xcmg Excavator parts) is an original equipment manufacturer (OEM) part specifically designed for the XCMG XE135Cboom cylinder excavator, with parameters fully conforming to OEM standards and specifically adapted to various operating conditions. This part is widely applicable to municipal construction, earthwork excavation, river dredging, roadbed reconstruction, and other engineering scenarios. It is a mainstream core component for XE135C excavator repair, replacement, and routine maintenance, and its stable quality has made it a highly recognized OEM hydraulic component in the construction machinery industry.
I.Working Principle and Core Performance Parameters
The 803007224 boom cylinder, as the core power source of the XE135C excavator’s boom, is mainly responsible for controlling the extension, retraction, and extension movements of the boom, providing the power for the equipment to complete continuous operations such as digging, lifting, and retraction. Its working principle relies on the machine’s hydraulic system, using hydraulic oil pressure to drive the piston rod in reciprocating motion, precisely transmitting power and ensuring accurate and controllable excavator movements with rapid response.
This original factory hydraulic cylinder strictly adheres to the design standards of the XCMG XE135C model, is compatible with the equipment’s 31.4Mpa main overflow system pressure, and boasts a standard stick digging force of up to 65kN. It delivers balanced and abundant power output with stable bursts of force. Whether it’s routine earthmoving, excavating soft soil, or tackling more challenging tasks like hardened mud or gravel layers, it maintains stable output without experiencing insufficient power or sluggish movement, perfectly matching the heavy-duty operation requirements of a medium-sized cylinder head engine excavator.
II.Product Technological Advantages
The XE135C 803007224 original boom cylinder(Xcmg Excavator Spare Parts) relies on XCMG’s original standardized production system. From material selection to processing technology, the entire process is controlled to a high standard. It is specially customized for the complex and harsh working conditions of construction machinery, and the overall quality, wear resistance and stability are upgraded in all aspects.
a. High-strength cylinder body material, resistant to deformation: The excavator cylinder body is forged from thickened high-strength alloy steel, unlike ordinary pipe welding processes, resulting in a stronger overall structural integrity. After precision grinding, high-temperature quenching, and multiple curing processes for rust and corrosion prevention, the cylinder body’s resistance to pressure, impact, and torsion is effectively improved. It can withstand harsh working conditions such as heavy loads, vibration, dust, and rain for extended periods, and is less prone to cracking, deformation, or damage during operation.
b. Precision chrome-plated piston rod, wear-resistant and corrosion-resistant: The piston rod is made using a high-precision hard chrome electroplating process, resulting in a uniform, thick, dense, and smooth plating layer. This effectively reduces frictional loss during piston reciprocating motion and extends the service life of the parts. It also resists corrosion from sand and gravel, air oxidation, and mud and water corrosion at the construction site, preventing common malfunctions such as piston rod jamming, rusting, and wear failure, ensuring smooth and stable excavation throughout the process.
c. Original factory sealing kit to prevent leakage: This product is equipped with XCMG’s exclusive custom sealing kit, using high-temperature resistant, anti-aging, and high-toughness high-quality sealing materials, perfectly adapted to the high-frequency, high-pressure heavy-duty operation conditions of the equipment. The product is pressure-resistant, wear-resistant, and not easy to crack or age, which can eliminate common problems such as oil leakage, pressure relief, and power fatigue in the cylinder from the root, stabilize the working pressure of the hydraulic system, effectively reduce the probability of equipment failure and downtime, and ensure continuous and stable construction.
d. Precise Original Factory Fit, Convenient Installation, High Efficiency, and Energy Saving: This XE135C 803007224(Xcmg Excavator Hydraulic Pump) is an original factory-exclusive excavator hydraulic cylinder(Xcmg Excavatorparts) for the XE135C series. All parameters are precisely matched to the original factory specifications, allowing for non-destructive installation in situ without modification or adjustment, effectively shortening maintenance downtime and reducing maintenance costs. The factory-optimized hydraulic circuit is compatible with the entire machine’s hydraulic system, resulting in low power loss, sensitive response, higher operating efficiency, and energy savings, making it suitable for long-term engineering construction needs.
III.Applicable Working Conditions and Advantages in Practical Use
As a mainstream medium-sized excavator, the XE135C is applicable to various civil engineering projects. Its corresponding 803007224 boom cylinder is specifically adapted to various construction conditions, with strong practical stability and usability, and its adaptability far exceeds that of ordinary general-purpose cylinders.
a. Adaptable to a wide range of construction scenarios: It can be perfectly adapted to various projects such as urban municipal renovation, road infrastructure, earthwork leveling in residential areas, roadbed excavation, farmland water conservancy construction, river dredging, and slope repair. Whether it is light-load leveling operation or medium- and heavy-load excavation and gravel removal operation, it can output power stably and adapt to the full-scenario operation needs of small and medium-sized excavators.
b. Stable and efficient operation with a low failure rate: Under continuous operation, the excavator arm cylinder responds quickly and operates precisely without jamming, lag, or deviation, effectively improving overall construction efficiency. Meanwhile, original factory parts undergo strict quality control, withstand long-term continuous heavy-load operation, and are not easily damaged, effectively reducing equipment downtime, avoiding project delays, and significantly lowering subsequent equipment maintenance costs.
IV. Scientific Daily Maintenance
High-quality original parts, combined with scientific and standardized daily maintenance, can maximize service life, stabilize operating performance, and reduce maintenance costs. For the XE135C 803007224 excavator hydraulic cylinder parts, following three core maintenance guidelines can help avoid most common malfunctions.
a. Routine inspection and protection before operation: Before starting work each day, check whether the cylinder body, welds and sealing joints are intact, and check for potential safety hazards such as oil leakage, deformation and loosening; clean the mud, sand and gravel attached to the piston rod surface in time to avoid hard objects scratching the chrome plating layer and prevent the piston rod from rusting and wearing.
b. Regularly change the hydraulic medium: Regularly check the hydraulic oil level and cleanliness, and promptly replace any deteriorated, cloudy, or impurity-containing hydraulic oil. At the same time, clean or replace the hydraulic filter element to prevent impurities from entering the cylinder and wearing down the cylinder wall and sealing components. This protects the hydraulic system from the source, ensures smooth cylinder operation, and extends service life.
c. Standardize construction and avoid overload: Avoid long-term overload construction, forced deep excavation of hard soil, prying of huge rocks and other illegal operations during operation to reduce instantaneous high pressure overload of the hydraulic cylinder, prevent failures such as piston rod bending, cylinder pressure relief, and seal damage, and ensure long-term stable operation of the excavator hydraulic arm cylinder.
The XE135C 803007224 mini excavator hydraulic cylinder, leveraging its original factory precision manufacturing process, precise machine compatibility, stable power output, multi-scenario adaptability, and ease of maintenance, has become a core and reliable component of the XCMG XE135C excavator’s hydraulic system. Whether for fault repair and replacement, upgrading old parts, or routine equipment maintenance and upgrades, choosing this original factory boom cylinder can quickly restore the equipment to its peak operating condition, effectively ensuring construction efficiency and reducing equipment maintenance costs. It is the preferred original factory Xcmg Parts in the construction machinery industry, balancing high quality, high compatibility, and high cost-effectiveness.
