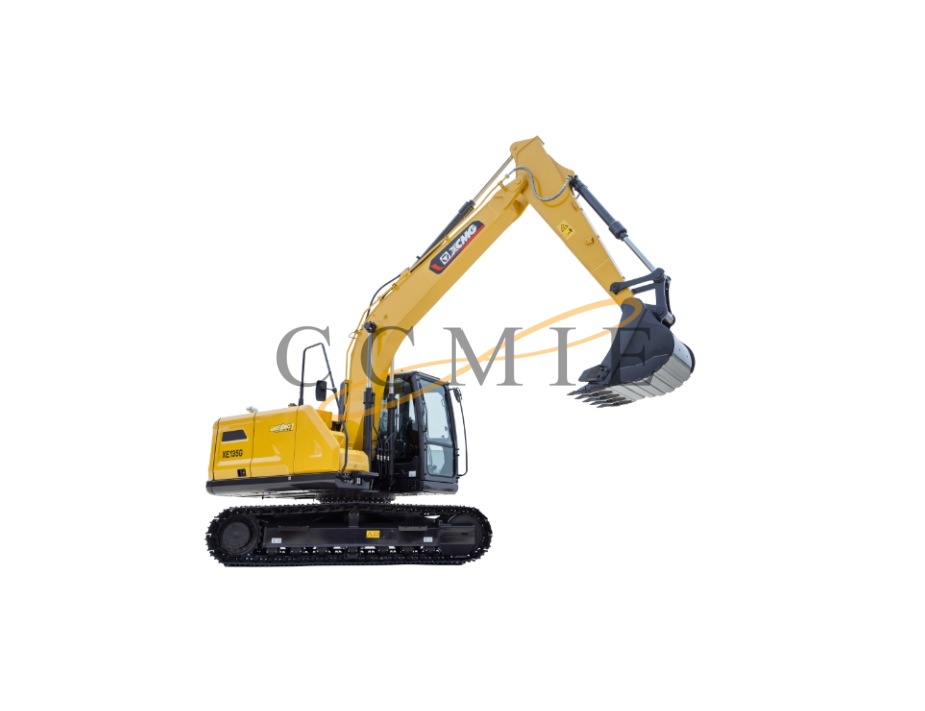

The boom cylinder is a core operating component of the excavator’s hydraulic system, directly affecting the equipment’s operational stability, efficiency, and service life. The XE135G 803086425 left arm cylinder is a dedicated accessory for the XCMG XE135G 13.5-ton medium-sized excavator. It strictly adheres to the original manufacturer’s production and quality inspection standards, with all installation dimensions, stroke, and pressure parameters precisely matched to the machine. It supports direct replacement of old or damaged cylinders in situ without modification or adjustment, effectively reducing equipment downtime and lowering maintenance costs.
I.Core Function of Boom Cylinder (803086425）
The left boom cylinder (803086425) Xcmg Parts of the XE135G excavator is a key component of the hydraulic system, ensuring stable operation of the equipment.
a. Power transmission function: It converts the hydraulic energy of the excavator hydraulic arm cylinder into mechanical energy, providing the core power for boom excavation, lifting and other operations, and is the power source for equipment foundation construction.
b. Lifting and lowering control function: Precisely controls the entire process of boom lifting and hovering, with sensitive response and smooth operation, eliminating problems such as motion jamming and uneven speed, and meeting the needs of refined construction.
c. Heavy-duty support function: It can stably support heavy materials such as earth and stone, reliably support the boom to be suspended during operation, effectively prevent the boom from falling off due to pressure relief and the machine body from sinking, and ensure the safety of heavy-duty construction.
d. Working condition buffering effect: The hydraulic buffer structure absorbs construction impact and vibration, reduces machine wear, effectively protects core structures such as boom, pins, and frame, and extends equipment life.
e. Energy saving and efficiency improvement: Precisely matching hydraulic telescopic movements improves construction accuracy and work efficiency, reduces ineffective energy consumption and loss, and achieves high-efficiency and energy-saving construction.
II.Core Advantages of the 803086425 Left Boom Cylinder
Compared to general-purpose non-standard hydraulic cylinders on the market, the 803086425 left excavator arm cylinder is specially customized for the XCMG XE135G, with significant advantages in material craftsmanship, sealing performance, energy efficiency, service life, and maintenance adaptability. It is a high-quality hydraulic component with high adaptability and high reliability for this model, and its core advantages are as follows:
a. High-strength material, suitable for harsh and heavy-duty working conditions.
The cylinder body is forged from high-strength alloy steel in one piece and strengthened by high-frequency quenching, resulting in a stable structure, impact resistance, deformation resistance, and resistance to cracking. It can withstand high-intensity operations such as hard soil breaking, heavy-duty lifting, and high-frequency excavation for extended periods, and is suitable for harsh outdoor working conditions with high dust, mud, and alternating high and low temperatures, exhibiting extremely high operational stability.
b. High-end sealing configuration eliminates common hydraulic failures.
The hydraulic cylinder(Xcmg Machine Engine Parts) is equipped with imported multi-layer composite sealing components, which are resistant to high temperatures, wear, aging, and corrosion, and have excellent sealing performance. This effectively eliminates common malfunctions such as oil leaks, pressure relief, insufficient pressure, and movement stagnation, maintaining a stable and balanced hydraulic system pressure, ensuring smooth and precise boom movements, and improving construction accuracy.
c. Optimized hydraulic structure for higher efficiency, energy saving, and lower losses.
Employing an optimized and upgraded hydraulic transmission structure, it ensures uniform pressure transmission and rapid response, perfectly matching the low-speed, high-torque power characteristics of the XE135G. Stable and ample power output effectively improves the efficiency of excavation, loading/unloading, and dredging operations, while reducing hydraulic energy consumption and equipment fuel consumption, thus balancing high-efficiency construction with energy-saving advantages.
d. Precision manufacturing process for longer service life.
The product undergoes standardized production throughout the entire process, with multiple rigorous quality inspections including cylinder(Xcmg Machine Engine Spare Parts) body precision grinding, high-pressure withstand testing, sealing testing, and precision calibration to eliminate defective products. Compared to ordinary general-purpose hydraulic cylinders, its service life can be extended by more than 30%, significantly reducing the probability of failure and the frequency of parts replacement.
e. In-situ non-destructive replacement, efficient and low-cost maintenance.
The products are manufactured strictly according to XCMG’s original specifications, with standardized interfaces and strong interchangeability. They can directly replace old parts in situ without modification or debugging. This effectively shortens equipment downtime, reduces labor and maintenance costs, and is fully adapted to the needs of efficient construction and rapid repair on construction sites.
III.Applicable Scenarios and Maintenance Recommendations for the 803086425 Left Boom Cylinder
a. Main applicable scenarios
The 803086425 left arm excavator hydraulic cylinders for sale is custom-designed for the XCMG XE135G medium-sized excavator, suitable for various small and medium-sized infrastructure and field construction scenarios. It excels in precision operations such as municipal road renovation and pipeline pre-laying, as well as heavy-duty projects like site leveling, foundation pit excavation, and earthwork transportation. It is also suitable for wet and water-related conditions such as river dredging and farmland irrigation, and high-load operations such as demolition, crushing, and waste removal, and can operate stably in complex environments with high dust levels and large temperature differences.
b. Professional repair and maintenance recommendations
(a) Routine appearance and sealing inspection: Before and after operation, check the cylinder and piston rod for bumps, deformation and corrosion, check the sealing position and joint for oil leakage, and replace the seals in time if minor faults are found to avoid the fault from expanding.
(b) Standardize construction operations: avoid overloading the boom, forcibly lifting heavy objects and violent impact operations, reduce instantaneous impact loads, prevent premature aging of seals and deformation of cylinder body, and extend the service life of excavator hydraulic cylinder manufacturers.
(c) Regular hydraulic system maintenance: Replace hydraulic oil and filter elements on time, keep hydraulic oil clean, avoid impurities from wearing cylinder walls and sealing structures, and reduce common problems such as cylinder scoring, internal leakage and jamming from the source.
(d) Timely replacement of faults: When the equipment has faults such as weak boom, slow lifting, boom drop, abnormal noise, or shaking, it is necessary to stop the machine for inspection in time and replace the original 803086425 special oil cylinder first to avoid the problem of poor compatibility of non-standard parts and repeated faults.
(e) Long-term storage and maintenance: When the equipment is idle, retract the piston rod and level the boom to prevent the rod from being exposed and corroded, and take measures to prevent dust and rust. Before restarting, conduct a no-load extension and retraction test, and put it into operation only after confirming that it is normal.
The XE135G 803086425 left boom cylinder is a high-quality, exclusive hydraulic component for the XCMG XE135G Excavatorparts. With its robust materials, precision manufacturing process, stable performance, and ultra-long service life, it provides a solid guarantee for stable equipment operation. Whether for routine maintenance and replacement or emergency repairs, this cylinder is perfectly suited to the machine’s operating conditions, contributing to efficient, low-consumption, and stable operation.
