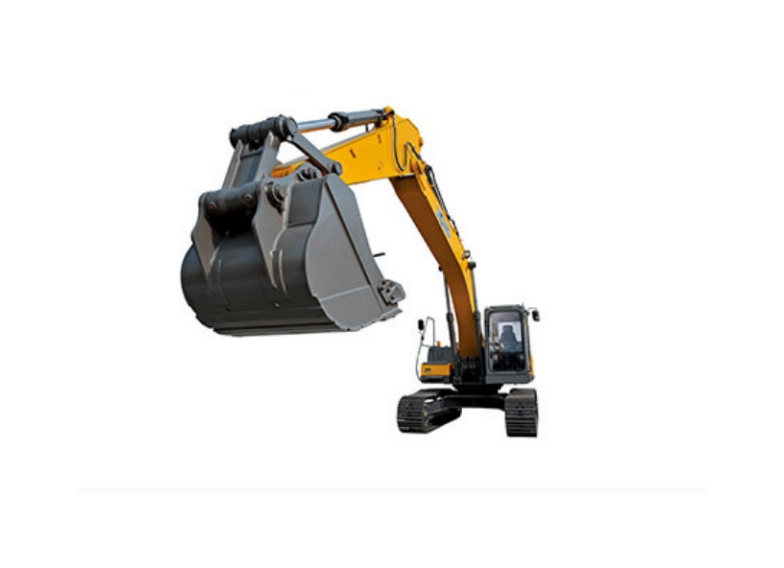

The boom cylinder is a crucial actuator in the hydraulic system of the XCMG XE235G medium-duty excavator. Its condition directly affects the machine’s digging power, smoothness of movement, and stability at the construction site. Part 803086435 is a boom cylinder accessory specifically developed for the XE235G arm cylinder excavator. Its parameters conform to original equipment manufacturer (OEM) standards, ensuring high compatibility with the machine’s hydraulic system. It is widely used in various construction site scenarios, including earthmoving, site leveling, trenching, and heavy-duty loading and unloading. Whether for routine maintenance, fault replacement, or complete overhaul, it is a highly practical replacement part.
I. Basic Product Compatibility Information: Precisely Matching the XE235G Model
The 803086435 boom cylinder on excavator is specifically developed for the XCMG XE235G excavator. Manufactured strictly according to original factory drawings and processing standards, its key parameters such as mounting hole positions, working stroke, and rated pressure are consistent with the original machine. It can be directly assembled in its original position without grinding, hole modification, or additional modifications, avoiding compatibility issues caused by non-standard parts. This cylinder is suitable for both the standard and enhanced versions of the XE235G. Compared to general-purpose cylinders on the market, it is optimized for the hydraulic characteristics of this machine. The cylinder’s extension and retraction speed and output thrust can work well with the main pump and distribution valve, providing powerful excavation under heavy loads and smooth operation for precise control. It is a reliable choice for XE235G maintenance and replacement.
II. Core Product Advantages: Adaptable to Heavy-Duty and Harsh Engineering Conditions
Excavator operating environments are harsh, with high levels of dust, mud, and impact loads. The hydraulic cylinders undergo repeated extension and retraction over long periods, placing high demands on overall strength and sealing reliability. The 803086435 boom cylinder-Xcmg Excavatorparts is optimized for the actual operating conditions of the XE235G cylinder excavator. Compared to ordinary general-purpose cylinders on the market, it offers advantages in adaptability, impact resistance, and service life, effectively improving common problems in original cylinders such as internal leakage, lack of power, oil leakage, and premature wear.
A. Original factory specifications are met, and the hydraulic system has a high degree of compatibility.
Manufactured strictly according to the original dimensions and parameters of the XE235G, the cylinder bore, rod diameter, mounting hole spacing, and rated pressure are completely compatible with the original vehicle, supporting direct replacement in place without modification. The cylinder extension and retraction response, pressure holding performance, and main pump and distribution valve of the whole machine are matched and coordinated, with very few cases of sudden fast or slow action or hydraulic pressure buildup. After installation, the operation feel is close to that of a new machine.
B. High-strength forged cylinder body, impact-resistant and not easily deformed:
The cylinder barrel is made of thickened high-strength alloy steel and integrally forged. After tempering heat treatment and high-pressure durability testing, the overall rigidity is solid and reliable. During construction, it can withstand the instantaneous impact of excavation, heavy lifting, and eccentric force. The cylinder barrel is not prone to bulging, deformation, or weld cracking. It can operate stably in harsh construction sites such as earthwork, infrastructure, and quarries.
C. Multiple composite seals ensure reliable pressure retention and reduce the probability of oil leakage.
It is internally equipped with multiple sets of high-pressure resistant and anti-aging seals to adapt to the temperature differences between day and night on the construction site. Combined with a dustproof, waterproof and mud-proof structure, it reduces the entry of impurities into the excavator arm cylinder and alleviates faults such as external leakage, cross-pressure, idling boom drop, and insufficient pressure holding under heavy load, thus maintaining the stability of the hydraulic system pressure.
D. Ultra-precision mirror-finish piston rod, wear-resistant, rust-proof, and with a longer service life:
The piston rod adopts an ultra-precision mirror-finish grinding process, combined with a high-strength protective coating, making it wear-resistant and rust-resistant. The frictional resistance during telescopic movement is significantly reduced, effectively preventing premature abnormal wear of the seals. The cylinder operates smoothly and steadily, with significantly reduced vibration and abnormal noise, minimizing additional expenses from multiple repairs and lowering the later maintenance costs of the equipment.
III. Common Faults and Repair Suggestions
The XCMG XE235G is used for long-term construction site operations. The boom cylinder-Xcmg Excavator Spare Parts is subjected to heavy load impact and mud and water corrosion, which can easily lead to pressure loss, oil leakage and abnormal operation. Many hydraulic failures are caused by the cylinder itself.
A. Slow pole movement and weak digging ability
This is a very common fault phenomenon for this model: it runs normally under no-load, but once it comes into contact with soil, it lacks power, the bucket retraction is slow, and lifting under heavy load is noticeably difficult. The fault mostly stems from wear of the oil seals inside the cat excavator cylinder, resulting in internal leakage and an inability to effectively maintain system pressure. Many repair technicians are accustomed to first adjusting the main pump pressure and inspecting the distribution valve, but the improvement after these measures is not ideal. Practical advice: First check the hydraulic oil condition, observing whether the oil is black or contains a large amount of impurities, ruling out oil circuit blockages; if the oil circuit and valve assembly are normal, directly replace the 803086435 excavator boom cylinder assembly. Compared to replacing a repair kit alone, the cylinder assembly has higher concentricity and more stable sealing performance, which can completely solve the internal leakage fault and reduce the probability of needing to return for repairs in the short term.
B. Oil leakage from the hydraulic cylinder
Dirt and sand intrusion will accelerate the aging of oil seals, causing oil leakage from the rod head. Minor oil leakage can be temporarily addressed by replacing the gasket; however, if a large area of oil leakage occurs, do not continue to work it out. To avoid insufficient hydraulic oil and air intake damaging other hydraulic components, it is recommended to replace the entire hydraulic cylinder.
C. Automatic boom drop and stick lowering during idle.
When the boom slowly descends while idling and suspended in the air, it indicates internal leakage in the excavator hydraulic cylinder parts and failure of the pressure holding mechanism, posing a safety hazard. Operation with this fault is strictly prohibited. Severe internal wear is unlikely to be resolved by simply replacing the oil seal; replacing the entire hydraulic cylinder assembly will eliminate the boom drop problem.
D. Cylinder extension and retraction jamming, abnormal noise during operation
Most malfunctions are caused by piston rod scoring, blockage by mud and sand, or internal wear of the cylinder-Xcmg Parts. If it is only a minor jam, cleaning the surface of the piston rod and checking and changing the hydraulic oil can be used as a temporary emergency measure. However, if there are obvious scratches on the piston rod and abnormal noises persist, it indicates that the cylinder has suffered structural damage. Continuing to operate with this defect will aggravate the damage to the entire hydraulic system, and it is recommended to replace the entire cylinder assembly.
IV. Professional maintenance techniques to extend the service life of hydraulic cylinders
Regular and proper maintenance can slow down the wear and aging of the 803086435 excavator boom cylinder seal replacement, extend the service life of parts, and ensure the stable operation of the XCMG XE235G.
A. Pre- and post-construction inspection and cleaning.
After each start-up and shutdown, promptly clean the surface of the piston rod of dirt and gravel to prevent hard objects from scratching the chrome plating and dustproof seal.
B. Regularly maintain the hydraulic oil and filter element.
Pay attention to the quality of hydraulic oil. Replace the hydraulic oil in time when the oil deteriorates or contains too many impurities. Replace the hydraulic filter element at the same time to prevent small particles from wearing down the precision parts inside the excavator bucket cylinder.
C. Standardized operating procedures
During construction, avoid prolonged overload operation, and avoid violent digging and impact to reduce the wear and tear caused by instantaneous high-pressure impact on the hydraulic cylinder and eccentric force.
D. Precautions for storage after shutdown
After the equipment is shut down, the boom is retracted to reduce direct exposure of the piston rod to sunlight and rain, delay the aging of the seals, and reduce the occurrence of failures.
The 803086435 excavator hydraulic cylinders is a dedicated hydraulic replacement part for the XCMG XE235G boom arm lift cylinder excavator. Its installation dimensions perfectly match the original vehicle height, and its robust cylinder structure and stable sealing performance are sufficient to handle the complex working environment of heavy loads and muddy conditions on construction sites. When the original cylinder experiences problems such as oil leaks, insufficient power, jamming, or boom drop, simply replacing the entire cylinder assembly allows for quick equipment repair, avoiding downtime and losses caused by repeated disassembly and repairs. It is a practical and cost-effective part for the maintenance and repair of the XCMG XE235G cylinder boom excavator.
