In the hydraulic system of the XCMG XE135B 13.5-ton excavator, the 803086427 stick cylinder is a core component controlling stick extension and retraction, digging operations, and posture adjustment, directly determining the equipment’s working force, control precision, and operational stability. As an original hydraulic component exclusive to the XE135B, this cylinder is compatible with the model’s complete set of hydraulic parameters and is widely used in municipal construction, earthwork backfilling, road infrastructure, farmland irrigation, and other engineering scenarios. Using genuine XE135B 803086427 stick cylinders-Xcmg Excavator Spare Parts is key to reducing equipment failures, extending equipment life, and ensuring stable construction operations.

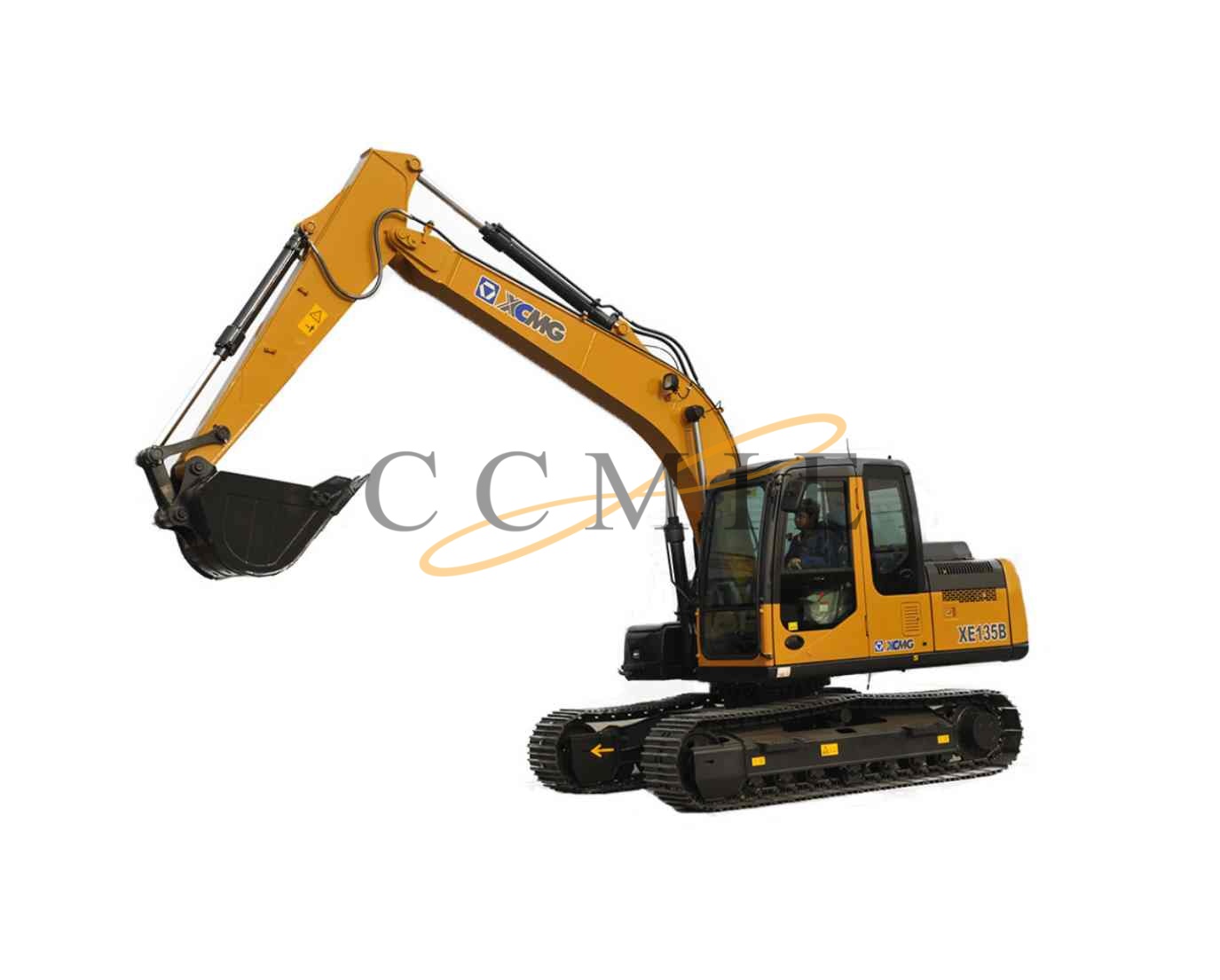

The XCMG XE135B is a mainstay excavator for small and medium-sized engineering projects, equipped with a reliable power and hydraulic system that boasts high stability and low fuel consumption. Its matching original 803086427 stick cylinder-Xcmg Excavatorparts precisely matches the original factory parameters, adapting to a system pressure of 31.4MPa and a stick digging force of 65kN, making it suitable for high-intensity operations under all working conditions and effectively avoiding common problems such as insufficient power, sluggish operation, and incompatible interfaces associated with non-standard parts.
I.Core Advantages of XE135B 803086427 Stick Cylinder
Ordinary non-standard boom cylinders on the market generally suffer from problems such as easy oil leakage, easy deformation, and short lifespan. However, the original XE135B 803086427 boom cylinder-Xcmg Parts has been comprehensively optimized in terms of materials, sealing, manufacturing process, and adaptability. It is suitable for various complex working conditions, and its overall performance far exceeds that of ordinary replacement parts. Its core advantages are as follows:
a. High-strength forged material, durable and wear-resistant.
This excavator hydraulic cylinder is forged from high-strength alloy steel in one piece, resulting in a stable cylinder structure, uniform wall thickness, and excellent resistance to pressure and impact. Facing high-intensity operations such as heavy-duty excavation, impact from crushed rocks, and high-frequency extension and retraction, it effectively resists wear and external impacts, preventing cylinder deformation, cracking, and damage, significantly extending the service life of components, and making it suitable for long-term, high-intensity construction.
b. Imported high-end seals to prevent leakage and pressure loss.
The excavator cylinder sealing assembly is made of imported PU and PTFE composite materials, which are resistant to high temperatures, aging, and wear, and can adapt to harsh working conditions such as dust, mud, and alternating high and low temperatures. Stable sealing performance can prevent hydraulic oil leakage, cylinder pressure loss, and digging weakness, ensuring constant equipment power and reducing downtime.
c. Precision machining process, smooth and accurate operation.
The excavator hydraulic cylinders inner wall is precision honed, resulting in a smooth and low-friction surface. Combined with a high-precision polished piston rod and guide structure, the stick extension and retraction response is rapid, the operation is smooth and without jamming, and the working posture is precise and stable. This perfectly matches the sensitive control characteristics of the XE135B excavator, effectively improving construction accuracy and efficiency.
d. Precise factory fit, ready to use immediately after installation, no adjustments required.
The 803086427 boom cylinder on excavator is manufactured entirely in accordance with XCMG’s original factory standards. Its dimensions, bore positions, pipelines, and pressure parameters are 100% matched with the XE135B model. No modification or debugging is required. Damaged old parts can be directly replaced, which greatly shortens the maintenance period, reduces downtime losses, and has an extremely high cost-effectiveness in maintenance.
II.Compatible Models and Application Scenarios
a. Dedicated compatible models
The 803086427 excavator boom cylinder is a dedicated part for the XCMG XE135B 13.5-ton excavator. It is precisely matched to the machine’s hydraulic parameter system and is not compatible with other models. This ensures the coordinated and stable operation of the entire machine’s hydraulic system and avoids compatibility failures from the source.
b. Mainstream Engineering Application Scenarios
This hydraulic cylinder-Xcmg Parts has a high degree of adaptability to various working conditions and is widely used in various small and medium-sized engineering scenarios such as municipal pipeline renovation, road maintenance, earthwork excavation and backfilling, site leveling, landscaping, and farmland water conservancy dredging.
c. Advantages in adapting to different operating conditions
The product is fatigue-resistant, high-temperature resistant, and wear-resistant, supporting all-weather, high-frequency, continuous operation. It has stable power output and can adapt to the high-intensity, uninterrupted construction rhythm of engineering projects, balancing work efficiency and equipment stability.
III.Parts Selection Standards and Equipment Maintenance Precautions
a. The dangers of selecting the wrong excavator cylinder parts
The boom cylinder is a core, easily damaged hydraulic component of an excavator. Using non-standard or inferior substitutes poses a significant risk, easily leading to problems such as sluggish operation, oil leaks and pressure drops, weak digging power, and bent piston rods, thus reducing construction efficiency. Furthermore, incompatible parts can cause abnormal hydraulic pressure, damaging core precision components such as the main pump and distribution valve, resulting in high maintenance costs.
b. Key Points for Accurate Selection
803086427 is the exclusive original factory code for the XCMG XE135B boom lift cylinder excavator, and it is the core basis for accurate selection. When purchasing replacement parts, be sure to verify the part code, select genuine original parts, avoid non-standard modified parts, and ensure that the parts are fully compatible with the machine’s parameters, interfaces, and performance.
c. Daily maintenance and care techniques
Routine maintenance requires regular checks of the cylinder seals, piston rod appearance, and pipeline tightness. Promptly clean mud and debris from the cylinder rod surface to prevent scratching the seals. Regularly inspect and change the hydraulic oil to reduce internal wear. Proper maintenance can effectively extend the cylinder’s lifespan and ensure stable equipment operation.
The XE135B 803086427 excavator arm cylinder, with its advantages of precise original factory fit, high-quality materials, and stable durability, is a core high-quality hydraulic component for XCMG XE135B excavators. It is suitable for various scenarios including routine maintenance, fault replacement, and complete machine overhaul, effectively reducing operating costs, minimizing downtime, and improving construction efficiency. It is the preferred replacement product for XE135B excavators.
