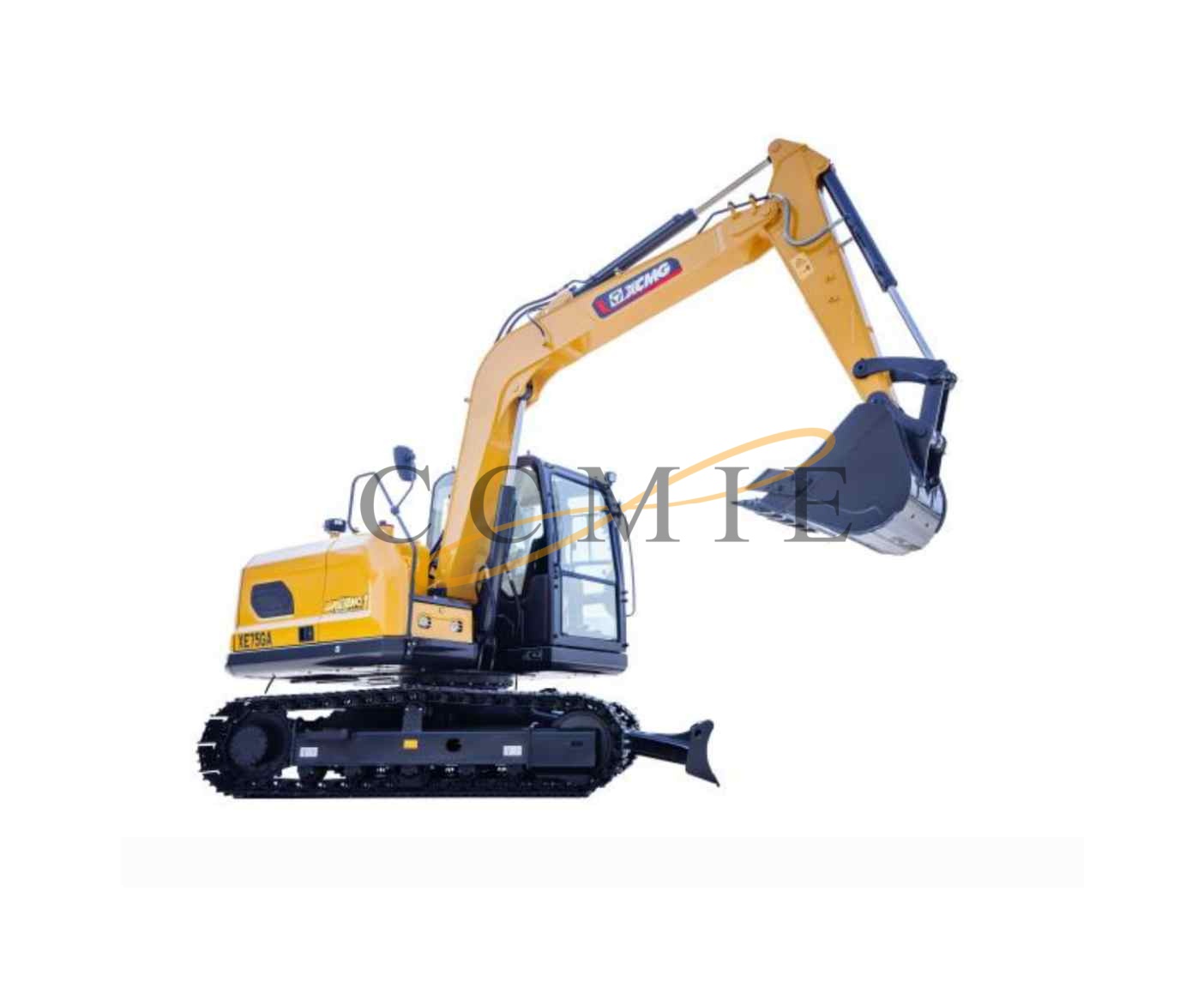

The XE75CA Xcmg Excavator parts is widely used in light to medium-sized engineering projects such as rural infrastructure construction, landscaping, interior demolition, earthwork excavation, and municipal pipeline construction. Its flexible operation and low fuel consumption make it popular with construction teams and rental companies. The XE75CA excavator boom cylinder (803089998), as the core hydraulic actuator, directly controls boom extension and retraction, digging depth adjustment, and material handling. The machine’s digging force and operational smoothness rely entirely on the stable hydraulic power output of the excavator cylinder Many machine owners encounter problems such as oil leakage from the hydraulic cylinder, weak movement, automatic sinking of the boom, and scratches and jamming of the piston rod after long-term high-load operation. Choosing the wrong model or using inferior aftermarket hydraulic cylinders during repairs not only prolongs the repair cycle but also causes frequent rework, increasing downtime losses.
I.803089998 Stick Cylinder Foundation Adaptation and Structural Parameters
Material code 803089998 is a special boom cylinder excavator manufacturers assembly for XCMG’s XE75CA model.
Core structural components: The complete assembly includes cylinder, high-strength piston rod, piston assembly, front and rear end caps, buffer sleeve, imported high and low temperature resistant sealing kit, hinged pin seat, and hydraulic oil port pipeline assembly. It can be directly replaced by the whole machine upon arrival, without the need to purchase individual Xcmg Excavator Spare Parts separately.
Process configuration standards
Cylinder barrel: The inner hole is precision rolled to make the inner wall smooth and wear-resistant, resisting hydraulic impurities and reducing internal leakage;
Piston rod: tempered and quenched + double-layer nickel-chromium electroplating, surface hardness HRC58-62, impact resistant, rust resistant and corrosion resistant, suitable for outdoor muddy and gravel working environments XCMG Group;
Buffer structure: Built-in two-way buffer valve, automatic pressure relief and buffering at the end of boom extension and retraction, reducing impact, protecting boom pin and hydraulic main pump, and reducing machine vibration;
Sealing system: Equipped with high-temperature resistant and hydraulic oil corrosion resistant sealing rings, ensuring long-term stable oil leakage under a standard working pressure of 30MPa.
Applicable working conditions: Municipal earthwork, garden ditching, house renovation, small-scale quarrying and clearing, farmland renovation and other continuous high-frequency telescopic operation scenarios.
II.Core Advantages of the Original 803089998 Stick Cylinder
Precise dimensions, direct installation without damage
All dimensions are manufactured according to the original XE75CA drawings, with perfect matching of hinge hole spacing, oil port position, and installation stroke. Replacement requires no grinding or modification, and disassembly and assembly can be completed in 1-2 hours, significantly reducing excavator downtime. Rented equipment can quickly resume work and generate revenue.
High load-bearing capacity, stable and powerful movement
The optimized piston force structure increases the digging traction force under the same hydraulic pressure. It does not show significant weakness when digging hard soil or gravel, and there will be no issues such as the boom extension/retraction jamming or sudden speed fluctuations. When the machine is stopped and stationary, there is no risk of the boom slowly sinking (internal leakage), resulting in a higher operational safety factor.
Durable seal, significantly reducing oil leaks and repairs.
It is equipped with imported composite seals that are resistant to high temperatures, dust, and mud and water erosion. Under normal maintenance conditions, the seal service life can reach more than 5,000 hours. Aftermarket cylinders(Xcmg Excavator Hydraulic Pump) mostly use ordinary rubber seals, which will cause oil leakage from the rod head after about 1,000 hours. Frequent replacement of oil seals increases labor and parts costs.
Impact resistant and durable, reducing maintenance frequency
Equipped with front and rear buffer mechanisms, the boom will not impact the cylinder bottom during construction, reducing cylinder deformation and piston rod bending failures; the thickened end caps and hinged bases are not prone to cracking or deformation during long-term heavy-duty excavation, making it suitable for long-term use on high-intensity rental sites.
III.Common Faults of the XE75CA Excavator Boom Cylinder
a. External oil leakage: Continuous oil dripping from the piston rod surface and sludge accumulation on the outer wall of the excavator bucket cylinder manufacturers are mostly due to worn oil seals and scratches on the piston rod. If the depth of the piston rod scratches exceeds the standard, simply replacing the oil seal will not solve the problem. It is recommended to directly replace the 803089998 cylinder(Xcmg Excavator parts) assembly.
b. Internal leakage and lack of strength: When digging hard soil, the boom cannot extend fully and the material collection force is insufficient. The no-load operation is normal, but the load operation is significantly slower. After standing still, the boom falls down on its own, which indicates that the piston seal has failed. Disassembly and repair are not cost-effective, and the assembly should be replaced first.
c. Abnormal noises and jamming: There are harsh impacts and friction noises when the boom extends or retracts, accompanied by machine body vibration. It is highly likely that the buffer sleeve is damaged or the cylinder is deformed. Repair is difficult and the accuracy is hard to restore.
d. Physical damage: Piston rod bent due to impact, cylinder outer wall dented due to impact, hinge base cracked, cannot be corrected or repaired, and the corresponding material number of the cylinder must be replaced.
If there is only slight oil leakage, no internal leakage, and no deformation, the sealing kit can be replaced separately. If multiple faults occur, directly purchase the original 803089998 boom cylinder(Xcmg Excavator Spare Parts) assembly to solve the problem once and for all, avoiding repeated downtime for maintenance.
IV. Key Points for Procurement, Installation, and Routine Maintenance of 803089998 Stick Cylinder
(a) Key points for procurement verification
Confirm that the excavator’s model number is XE75CA and the parts code is 803089998; both are indispensable.
Prioritize suppliers that offer complete assemblies to avoid purchasing excavator hydraulic boom cylinder barrels or piston rods separately, as mismatched parts can easily lead to dimensional discrepancies and poor sealing.
Before accepting the goods, check whether there are scratches on the piston rod surface, whether the cylinder is bumped or deformed, and whether the sealing parts are complete.
(b) Installation Precautions
Release the residual hydraulic pressure of the entire machine before disassembly and assembly to prevent high-pressure oil spray from injuring people;
When installing oil port lines, replace with brand new O-rings and tighten with moderate force to avoid stripping threads and oil leakage;
After assembly, reciprocate the telescopic boom 5-10 times under no-load to purge the air from the cylinder, and then test the machine under load to prevent vibration and weakness.
(c) Maintenance Techniques to Extend the Service Life of Hydraulic Cylinders(Xcmg Parts)
Before each day’s operation, clean the surface of the piston rod of dirt and gravel to prevent impurities from being brought into the oil seal during extension and retraction and causing scratches.
Regularly replace the original standard hydraulic oil and return oil filter element, as impurities in the hydraulic oil are the primary cause of cylinder seal and cylinder wear;
Reduce rough handling during construction, avoid violent impacts at the limit position of the boom, and reduce wear on the hydraulic cylinder buffer components;
When storing an excavator for an extended period, fully retract the boom to protect the exposed electroplated areas of the piston rod from rusting.
The XE75CA boom cylinder (part number 803089998) is an irreplaceable original hydraulic core component for the XCMG 75CA mini excavator. Precisely matched to the machine model, robustly constructed, and durable with excellent sealing, it perfectly resolves various cylinder malfunctions such as boom oil leakage, weak movement, and automatic sinking. While choosing the corresponding original cylinder assembly may have a higher initial purchase cost than aftermarket parts, it significantly reduces long-term maintenance frequency and downtime losses, resulting in a higher overall cost-effectiveness.
