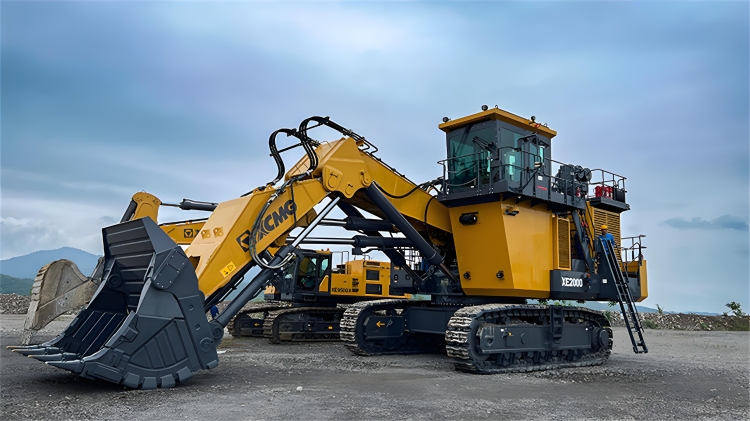

Efficient and stable equipment operation is crucial in mining operations. The XCMG XE2000 mining excavator, with its powerful performance, has become a valuable asset for many mining companies. To ensure the continued optimal performance of this large-scale equipment, a high-quality supply of spare parts is essential. This article will delve into the common spare part types and their importance for the XCMG XE2000 mining excavator.

Engine Spare Parts

As the “heart” of the excavator, the importance of its spare parts is self-evident. The diesel engine fuel pump is a core component, precisely controlling the fuel injection volume and timing to ensure stable power output at various engine speeds. Taking the engine of the XCMG XE2000 as an example, its fuel pump must precisely deliver fuel to 6-8 cylinders per cycle, with an error of ±0.5ml. A fuel pump failure not only reduces engine power and increases fuel consumption, but can also cause engine shutdown, impacting overall mine operations.

Nozzle atomization is equally critical. A high-quality nozzle can atomize fuel into droplets with a diameter of 5-10μm, which are thoroughly mixed with air and then burned, achieving a combustion efficiency exceeding 95%. If the nozzle atomization is poor, fuel will enter the cylinder directly as droplets, reducing combustion efficiency and increasing fuel consumption by 10-15%. It also forms carbon deposits, exacerbating wear on the cylinder walls and piston rings, and shortening engine life. Filter elements serve as the engine’s protective shield. The oil filter element must filter impurities such as metal debris and carbon deposits from the oil, achieving a filtration accuracy of 10μm to ensure that the oil provides adequate lubrication for the engine’s internal components. The fuel fine filter element further removes fine impurities and water from the fuel, preventing it from entering the injectors and causing clogging. The oil-water separator element separates water from the fuel, preventing it from corroding fuel system components. Together, these three types of filters form a critical line of defense for stable engine operation.

Hydraulic System Spare Parts

The hydraulic system is the power source for the excavator’s various movements, and the reliability of its spare parts directly impacts the equipment’s operating efficiency. The bucket hydraulic cylinder, as the actuator, controls the bucket’s digging and unloading movements. The XCMG XE2000′s bucket hydraulic cylinder has a stroke of 2-3 meters and a maximum thrust exceeding 500kN. Hydraulic cylinder seals are consumable parts made of polyurethane or nitrile rubber. Damage to these seals can cause hydraulic oil leakage, reducing digging force and affecting bucket movement accuracy. For example, a material that could previously accurately dig to a depth of 0.5m may experience an error of ±0.1m, increasing mining operations.

The hydraulic pump, as the “power source” of the hydraulic system, converts the engine’s mechanical energy into hydraulic energy. The twin hydraulic pumps used in the XCMG XE2000 can output 400-500L of hydraulic oil per minute. Internal components such as the plunger and valve plate require extremely high machining precision, with clearances controlled within 0.005-0.01mm. Wear can cause a drop in hydraulic pump output pressure and slow equipment operation. For example, bucket lifting time could increase from 10 seconds to over 15 seconds.

The return, suction, and pilot filters are responsible for ensuring the cleanliness of the hydraulic oil. The return oil filter, installed in the hydraulic system’s return oil line, filters impurities such as metal debris and seal wear particles generated during the hydraulic oil circulation process. The suction filter, installed at the hydraulic oil tank intake, prevents impurities from the tank bottom from being drawn into the hydraulic pump. The pilot filter filters impurities from the pilot hydraulic system, ensuring the proper functioning of precision components such as the pilot valve. If these filters fail, impurities can enter the hydraulic system, exacerbating wear on components such as the hydraulic pump and cylinder, leading to hydraulic system failure and potentially costing tens or even hundreds of thousands of yuan in repair costs.

Structural Spare Parts

The XCMG XE2000 mining excavator’s large structural components, such as the chassis, slewing platform, and working mechanism, feature fatigue-resistant designs designed to withstand the impact of long-term, high-intensity operations. However, some smaller components are still susceptible to wear and damage during mining operations. The bucket teeth are typically the most vulnerable component. Installed at the front edge of the bucket, they come into direct contact with ore, rock, and other materials, subjecting them to hundreds of kilonewtons of impact and intense friction during each excavation. Bucket teeth typically have a service life of 50 to 200 hours, depending on the hardness of the mining material. Failure to replace them promptly will increase digging resistance, fuel consumption, and wear on the bucket body, shortening the bucket’s overall service life.

Wear plates are also important structural spare parts, primarily installed on the bucket’s bottom and sides, as well as on the boom and arm, where they are subject to wear. The wear plates commonly used in the XCMG XE2000 are made of NM450 or NM500 wear-resistant steel, with a hardness of HB450-500 and a wear resistance 3-5 times that of ordinary steel plates. During mining crushing operations, the wear plates on the bucket bottom can wear up to 5-10mm per month. Regular replacement of the wear plates effectively protects the bucket body and extends its service life by 2-3 times. In addition, connecting components such as pins and bushings also require special attention. They connect the boom, arm, and bucket, bearing significant shear and impact forces. If pin wear exceeds 0.5mm, it can loosen component connections, produce unusual noises, affect equipment coordination, and even cause accidents.

Electrical System Spare Parts

With technological advancements, the XCMG XE2000 is equipped with an intelligent management system. The electrical system plays a critical control and monitoring role in equipment operation. The main wiring harness is the “neural network” of the electrical system, responsible for transmitting engine control signals, hydraulic system control signals, sensor monitoring signals, and more. The XCMG XE2000′s main wiring harness contains hundreds of wires of varying specifications, totaling over 100 meters in length. These wires are insulated with high-temperature, low-temperature, and oil-resistant cross-linked polyethylene, ensuring normal operation in temperatures between -30°C and 80°C. Damage or poor contact in the main wiring harness can cause partial equipment malfunctions, such as engine failure, abnormal instrument panel displays, and loss of hydraulic control, posing safety risks to mining operations.

Sensors are the “sensing organs” of the electrical system. Temperature sensors monitor engine coolant and oil temperatures, operating within a normal range of 80°C to 95°C. If the temperature exceeds 105°C, the sensors immediately send a signal to the control system, triggering an alarm. Level gauges monitor the hydraulic tank and engine oil levels to ensure they remain within the normal operating range, preventing low oil levels from causing insufficient lubrication or hydraulic system failure. Furthermore, electrical components such as starter motors and generators are essential. The starter motor must be able to start the engine smoothly in low temperatures (-25°C) and produce a torque of at least 500 Nm. The generator must power all electrical components and must provide at least 2000W of output power to ensure stable operation of the equipment’s electrical systems.
