The Shantui bulldozer idler is a core guiding component of the chassis travel system, mounted at the front of the bulldozer. Its primary function is to guide the track to rotate correctly, prevent deviation and derailment, while coordinating with the tensioning device to adjust track tightness. For some models, it also provides auxiliary load-bearing support. As a key part ensuring stable bulldozer operation and extending the service life of tracks and chassis components, our OEM Shantui idlers are crafted with high-quality materials and precision manufacturing processes. They are compatible with the entire range of Shantui bulldozers, offering excellent wear resistance, superior sealing performance, and the ability to handle harsh construction conditions such as mines, earthworks, and infrastructure projects. These idlers effectively reduce equipment failures and downtime costs, making them indispensable core wearing parts in engineering construction.
I. Core Functions and Structural Composition of Shantui Bulldozer Idler
As the “guiding hub” of the bulldozer travel system, the performance of the Shantui idler directly determines the stability of track operation, which in turn affects the overall working efficiency and safety of the machine. Unlike the power transmission function of the drive sprocket, the core value of the idler lies in “guidance” and “auxiliary protection,” with specific functions reflected in three aspects: first, guiding the track to rotate along the correct path, accurately limiting lateral displacement of the track, and eliminating faults such as deviation and derailment; second, coordinating with the tension cylinder to adjust track tightness, maintaining the track at an appropriate tension level to reduce friction loss between the track and other components; third, for some models, the idler can assist in bearing the overall weight of the machine, optimizing the force distribution of the chassis, and improving the passing stability of the equipment under complex working conditions.

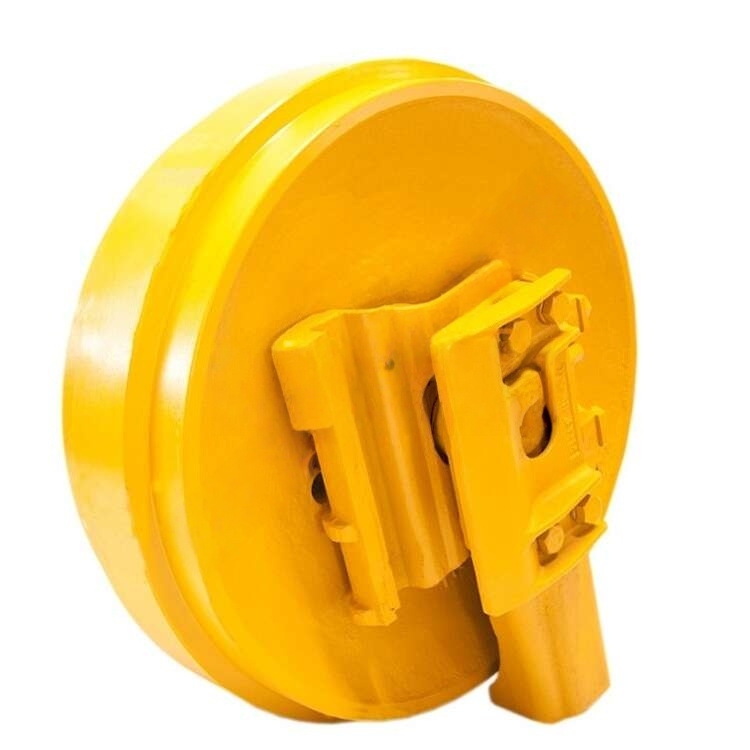

In terms of structural composition, the Shantui idler is integrated with a hub, rim, bushing, sealing assembly, and bearing system. Some models also include auxiliary components such as idler brackets, with all components working together to ensure stable operation of the idler. The rim is designed with an optimized streamlined shape, which can effectively reduce the lateral slip rate of the track during high-speed steering or climbing, significantly extending the joint service life of the track shoes and the wheel body. The sealing assembly adopts high-quality floating oil seals, which can effectively block the intrusion of mud, dust, and other impurities, protect internal bearings and bushings, avoid faults such as oil leakage and jamming, and adapt to harsh working environments such as humidity and heavy dust.
II. Materials and Manufacturing Processes: The Foundation of High Wear Resistance and Impact Resistance
The Shantui idler operates in a working environment with high friction and high impact for a long time, needing to bear the lateral extrusion force of the track and the complex impact force of the ground. Therefore, strict requirements are imposed on material selection and manufacturing processes. Adhering to high-standard production specifications, Shantui OEM idlers optimize materials and processes in collaboration with professional research institutions, ensuring that the durability and stability of the products are far above the industry average.
1. Selection of High-Quality Raw Materials
The main body of Shantui OEM idlers is made of high-strength alloy cast steel such as ZG35Mn and ZG40Cr. For some models, the wheel body is made of high-quality alloy steel 40Mn2. These materials have excellent mechanical properties, wear resistance, and impact resistance, which can effectively resist losses caused by long-term friction and impact, and avoid premature wear, deformation, or cracking of the wheel body. Raw materials undergo strict selection and testing, with sulfur and phosphorus content controlled at extremely low levels to ensure material purity, laying a solid foundation for subsequent processing and heat treatment.
2. Precision Manufacturing and Professional Heat Treatment Processes
Shantui idlers are produced using precision casting technology, with high wheel body forming accuracy. The dimensional error of the rim and hub is controlled within a very small range to ensure precise fit with the track and bushing. After forming, the wheel body and rim contact surface undergo professional processes such as medium-frequency quenching and tempering. The surface hardness of the rim reaches HRC45-50, with a uniform hardened layer depth, which not only ensures surface wear resistance but also maintains the toughness of the wheel body core, effectively inhibiting the expansion of microcracks caused by high-frequency impact in mining operations. Meanwhile, Shantui has developed a gradient carburizing + laser cladding composite process in collaboration with research institutions, which further increases the surface hardness of the rim to HRC62, and the wear resistance is 2.1 times higher than that of traditional processes, which has been mass-applied in large-scale mining scenarios. In addition, the surface of the idler is treated with anti-rust and anti-corrosion measures, which can effectively resist the erosion of moisture, dust, and chemical substances, extending the service life in outdoor operations.
III. Full Model Compatibility: Covering Mainstream Shantui Bulldozers, Supporting Custom Production
Shantui idlers are designed and produced in strict accordance with OEM drawings, accurately matching the entire range of Shantui bulldozer models, covering all tonnages from 80 to 900 horsepower. Whether it is the SD16 series for medium-sized earthworks or the SD32 series for large-scale mining operations, there are specially adapted idler products. At the same time, custom production can be carried out according to samples and drawings provided by customers to meet special working conditions and equipment needs. Common compatible models and corresponding part numbers are as follows:
- Shantui SD13 Series: Suitable for SD13 model, part number 10Y-40-03000, applicable to small-scale earthworks, farmland renovation, and other light to medium-duty operations;
- Shantui SD16 Series: Suitable for SD16, SD16L models, part numbers 16Y-40-03000-01, 16Y-40-03101, with reinforced left and right bracket structures to improve load-bearing capacity and durability, applicable to medium-sized earthworks and infrastructure construction;
- Shantui SD22 Series: Suitable for SD22, SD22L, SD22S models, part number 23Y-40B-00000V030-01, compatible with Komatsu D85 model, applicable to heavy-duty operations such as mining and road construction;
- Shantui SD32 Series: Suitable for SD32, SD32W models, part number 175-30-00572V010-01, designed for large-scale heavy loads, applicable to large-scale mines and engineering projects;
- Other models: SD23, SD42, etc., part number 154-30-00770-01, fully covering various power and working condition needs.
Each Shantui idler undergoes strict pressure testing, walking testing, and other inspection processes before leaving the factory. The installation hole position and dimensional accuracy are completely consistent with the OEM equipment, no modification is required, and installation is convenient, allowing quick replacement to save maintenance time and labor costs. Meanwhile, the gap between the idler side plate and the frame is strictly controlled between 0.5-1mm. If it exceeds 3mm, it can be calibrated by adjusting the gasket to ensure stable operation of the idler and avoid derailment risks caused by left-right swing or inclination of the idler.
IV. Common Faults and Troubleshooting Methods: Solve Problems Quickly, Reduce Downtime Loss
The idler is in long-term contact with the ground and bears lateral pressure, making it prone to faults such as wear, oil leakage, and deviation. If not inspected and handled in a timely manner, it will accelerate the wear of components such as tracks and track rollers, and even lead to equipment shutdown. Based on the structural characteristics and working conditions of Shantui idlers, the following are common faults, causes, and troubleshooting methods to help quickly locate and solve problems:
1. Rim Wear and Track Deviation
Fault Performance: The idler rim is sharpened, the tread is unevenly worn, the wheel body is inclined, the track deviates and shakes during bulldozer operation, and track derailment occurs in severe cases, accompanied by increased operating noise.
Causes: Long-term operation in working conditions with many gravels and debris, causing friction between the rim and hard objects; the gap between the idler side plate and the frame is too large (exceeding 3mm), leading to left-right swing of the idler; improper adjustment of track tightness, resulting in uneven force; offset installation of the wheel body, leading to poor meshing with the track.
Troubleshooting: Turn off the equipment power and clean the surface of the idler and debris between the wheel teeth; use a straightedge to measure the gap between the idler side plate and the frame. If it exceeds 3mm, loosen the M18 bolts, take out the gaskets for adjustment, ensure the gap is controlled between 0.5-1mm, each gasket has a thickness of 1.0mm, and control the torque between 344-422N.m when tightening the bolts; check the wear of the rim, and if the wheel body is inclined due to severe wear, replace the idler in a timely manner; adjust the track tightness to ensure the track is moderately tight and avoid uneven force.
2. Idler Oil Leakage and Jamming
Fault Performance: Oil leakage occurs at the idler shaft end, the wheel body rotates unsmoothly, gets stuck, or even cannot rotate, accompanied by overheating and abnormal noise during operation, which will accelerate track wear in severe cases.
Causes: Aging and damage of floating oil seals, failure of sealing performance, leading to lubricating oil leakage; wear and jamming of internal bearings, inability to rotate normally; insufficient lubricating oil or incorrect model, poor lubrication effect; intrusion of mud and dust into the interior, wearing the bushing and bearings.
Troubleshooting: Check the sealing at the idler shaft end, and replace the aging floating oil seals and sealing components if oil leakage is found; disassemble the idler, check the wear of internal bearings and bushings, and replace them in a timely manner if wear or jamming occurs; add lubricating oil that meets the standards to ensure sufficient lubrication; regularly clean debris on the surface of the idler to avoid intrusion of mud and dust into the interior.
3. Wheel Body Cracks and Deformation
Fault Performance: Obvious cracks appear on the idler wheel body, the rim is deformed and uneven, it meshes poorly with the track, cannot guide the track to operate normally, and may even lead to wheel body fracture.
Causes: Overload operation of the equipment, causing the idler to bear excessive impact; unqualified materials or substandard heat treatment processes, insufficient toughness of the wheel body; collision with hard objects during operation, causing damage to the wheel body; fatigue wear after long-term use, leading to crack expansion.
Troubleshooting: Visually inspect the idler wheel body for cracks and deformation, and use professional testing tools if necessary; if cracks or obvious deformation occur, stop using it immediately and replace the idler to avoid fault expansion; avoid overload operation of the equipment, avoid collision with hard objects during operation, and regularly check the status of the wheel body.
V. Core Advantages of Choosing Shantui OEM Idlers
When selecting Shantui bulldozer idlers, OEM parts have irreplaceable advantages over non-OEM parts in terms of quality, compatibility, and durability, making them the first choice for ensuring stable equipment operation in engineering construction:
1. Strict Quality Control: Shantui has a complete quality control system, and has established an innovation consortium with University of Science and Technology Beijing and CITIC Special Steel to formulate special material formulas and heat treatment standards. Each idler undergoes multiple processes such as material testing, process supervision, and factory inspection to ensure compliance with OEM standards, stable performance, and long service life, which can effectively reduce the cost loss caused by frequent replacement.
2. Precise Compatibility Without Worries: Tailor-made for Shantui bulldozer models, the installation hole position, size, and rim profile are completely matched with the OEM equipment, no modification is required, and installation is convenient. It avoids problems such as poor meshing, track wear, and idler jamming caused by dimensional deviations of non-OEM parts, ensuring smooth equipment operation.
3. Excellent and Durable Performance: Adopting high-quality alloy cast steel materials and advanced heat treatment processes, the wheel body has high hardness, good toughness, excellent wear resistance, impact resistance, and corrosion resistance. It can adapt to various harsh working conditions such as dry land, wetland, and mines, with excellent sealing performance, effectively preventing oil leakage and dust intrusion, and extending service life.
4. Comprehensive After-Sales Support: Shantui has a global after-sales service system, providing professional technical support and maintenance guidance. If there is a quality problem with the product, it can be responded to and solved quickly, reducing the worries of customers. At the same time, it provides complete product certification, complying with international export standards.
5. Outstanding Cost-Effectiveness: Although the initial purchase cost of OEM idlers is slightly higher than that of non-OEM products, their service life is 1.5-2 times that of ordinary non-OEM products. They can reduce replacement frequency, maintenance costs, and downtime losses, resulting in higher cost-effectiveness in long-term use, making them more suitable for long-term stable operation needs.
VI. Purchase and Daily Maintenance Recommendations
1. Purchase Recommendations
- Prioritize Shantui OEM idlers, check the bulldozer model and part number (e.g., Shantui SD16 idler part number 16Y-40-03000-01) to ensure precise adaptation between the accessory and the equipment. Avoid purchasing counterfeit and shoddy products that affect the normal operation of the equipment.
- Check the product’s test report and quality certification to confirm that the product materials and processes meet the standards. Prioritize suppliers with formal channels and comprehensive after-sales support to ensure product quality and timely delivery.
- Select the appropriate idler type according to the working conditions. For heavy-duty and gravel-rich working conditions such as mines, reinforced idlers can be selected; for wetland working conditions, waterproof and sealed upgraded models can be selected to extend the service life of the accessories.
2. Daily Maintenance Recommendations
- Regularly check the wear, deformation, and oil leakage of the idler, focus on checking the wear degree of the rim and the sealing status, and handle abnormalities in a timely manner to avoid fault expansion.
- Regularly adjust the gap between the idler side plate and the frame to ensure the gap is controlled between 0.5-1mm, avoiding idler swing and track deviation caused by excessive gap.
- Add lubricating oil that meets the standards on time, regularly clean debris and soil on the surface of the idler and between the wheel teeth, and avoid intrusion of mud and dust into the interior, which may wear bearings and bushings.
- Avoid overload operation of the bulldozer, avoid collision of the idler with hard objects during operation, reduce impact and damage to the wheel body, and extend the service life of the idler.
- When replacing the idler, it is recommended to check the track tightness and track wear at the same time, adjust to an appropriate state, ensure good meshing between the idler and the track, and improve the stability of the overall chassis system.
As the “guiding core” of the bulldozer chassis travel system, the quality and performance of the Shantui bulldozer idler directly affect the working efficiency, service life, and construction safety of the bulldozer. Choosing Shantui OEM idlers, relying on the advantages of high-quality materials, precision manufacturing, and precise adaptation, can effectively reduce the occurrence of faults, reduce downtime costs, and escort various engineering constructions. We provide genuine Shantui idlers, compatible with all models, supporting custom production and global shipping, helping customers improve construction efficiency and reduce operating costs.
