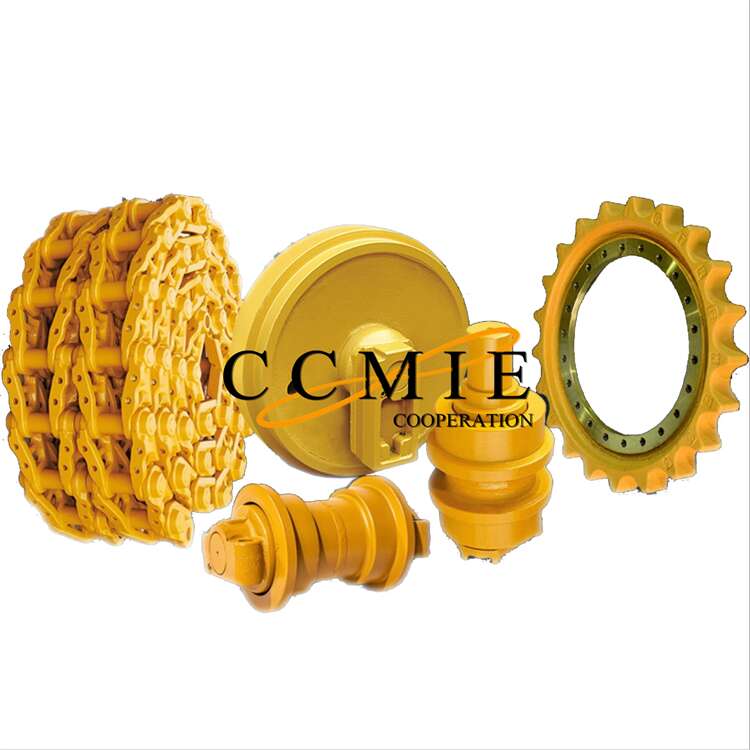

Shantui bulldozer undercarriage parts (also known as four wheels and one belt parts) are the core chassis components of bulldozer travel systems, including drive sprockets, idlers, track rollers, carrier rollers, and track assemblies. Fully compatible with all Shantui models such as SD16, SD22, and SD32, these original equipment manufacturer (OEM) parts feature high durability, precise fit, and reliable performance. They are crucial for ensuring stable equipment operation, reducing downtime, and cutting maintenance costs in engineering construction projects worldwide.
I. Core Components & Functions of Shantui Bulldozer Undercarriage Parts
1. Drive Sprocket
As the core of power transmission, the drive sprocket connects to the travel motor and transmits power to the track by meshing with track bushings, driving the bulldozer forward and backward. Compatible with Shantui models SD16, SD22, SD32, etc., it is made of high-strength alloy materials such as 40Mn2 and 50Mn. The sprocket teeth are subjected to medium-frequency quenching, with a hardness of HRC45-52, ensuring impact resistance, wear resistance, and preventing tooth jumping and track derailment.
2. Idler
Located at the front of the bulldozer, the idler guides the track to rotate correctly, preventing deviation and derailment. Some models also have auxiliary load-bearing functions. Shantui OEM idlers adopt precision casting technology, with high fit accuracy between the wheel body and bushing. Equipped with floating oil seals, they effectively block mud and water intrusion, adapting to complex working conditions such as dry land and wetland, and reducing abnormal track wear.
3. Track Roller
The track roller bears the entire weight of the bulldozer, rolls along the track rail surface, and clamps the track to prevent lateral slipping. It is divided into single-sided track rollers and double-sided track rollers, adapting to the chassis structures of different models. Shantui track rollers are manufactured by forging or casting processes, with surface quenching reinforcement. The shaft components are processed with high precision, with a hardness of HRC42, excellent sealing performance, and reduced oil leakage and jamming failures.
4. Carrier Roller
The carrier roller supports the upper track, maintains track tension, prevents track sagging and falling off, and reduces friction loss between the track and the chassis. Shantui carrier rollers have a compact structure and wear-resistant wheel surfaces, compatible with all series of Shantui bulldozers. They are easy to install and effectively extend the service life of the track and other undercarriage components.
5. Track Assembly (One Belt)
Composed of track shoes, track links, track pins, and bushings, the track assembly is in direct contact with the ground, providing grip and stability. Shantui OEM tracks are made of high-strength wear-resistant steel, with reasonable track shoe lug design and precise track link pitch. Compatible with models such as SD16 and SD22, they adapt to various construction scenarios including dry land, wetland, and mines, with high tensile strength and wear resistance, reducing the risk of track derailment and breakage.
II. Application Scenarios: Full Working Conditions & All Shantui Models Compatibility
Shantui bulldozer undercarriage parts are compatible with mainstream Shantui bulldozer models such as SD13, SD16, SD16L, SD22, SD32, SD42, and are widely used in:
- Earthwork Engineering: Farmland renovation, site leveling, roadbed construction, suitable for dry land and soft soil conditions;
- Mine Operations: Mine stripping, ore transportation, impact resistance and wear resistance, coping with harsh environments such as rocks and gravel;
- Infrastructure Construction: Highway, railway, and water conservancy project construction, meeting the needs of long-term continuous operation;
- Wetland/Swamp Conditions: Wetland-type track assemblies with low ground pressure, avoiding sinking and ensuring equipment passability.
III. Common Faults & Troubleshooting: Locate Problems Quickly, Replace Parts Timely
1. Abnormal Track (Derailment, Slack, Wear)
Fault Performance: Excessive track sag (over 20-40mm), tooth jumping, derailment, worn track shoe lugs, and extended track link pitch.
Troubleshooting: Check track tension and adjust the tension cylinder; inspect whether the drive sprocket teeth are worn into a beak shape, and whether the track pins and bushings are worn or have failed seals; replace severely worn track assemblies and drive sprockets in a timely manner.
2. Track Roller Faults (Wear, Oil Leakage, Jamming)
Fault Performance: Sharpened track roller flange, uneven tread wear, wheel body cracks, abnormal rotation noise, overheating, and loose or broken bolts.
Troubleshooting: Check whether the track roller seal is leaking oil and whether the wheel body has cracks; verify the installation bolt torque, and replace worn or damaged track rollers in a timely manner to avoid accelerating the wear of the track and other components.
3. Idler/Carrier Roller Faults (Wear, Deviation)
Fault Performance: Wear of the idler raceway surface and flange, unsmooth rotation of the carrier roller, and bulldozer travel deviation or jitter.
Troubleshooting: Check the alignment of idler and carrier roller installation, and clean foreign objects on the wheel body; replace severely worn idlers and carrier rollers, and adjust track tension to ensure stable travel.
4. Drive Sprocket Faults (Tooth Jumping, Tooth Breakage)
Fault Performance: Wear and breakage of drive sprocket teeth, tooth jumping during travel, and power transmission failure.
Troubleshooting: Check the meshing between the drive sprocket and the track, replace worn or broken drive sprocket tooth blocks or assemblies, and avoid track derailment and equipment downtime caused by tooth jumping.
IV. Advantages of Choosing Shantui OEM Undercarriage Parts
1. Quality Assurance: OEM materials and process standards, high durability and long service life, reducing frequent replacement costs;
2. Precise Compatibility: Designed exclusively for Shantui models, with precise mounting holes and dimensions, no modification required, and easy installation;
3. Stable Performance: Qualified sealing and heat treatment processes, adapting to complex working conditions and reducing failure rates;
4. Reliable After-Sales Service: Perfect after-sales system for OEM parts, ensuring compatibility and quality, and reducing maintenance disputes.
V. Purchase & Maintenance Recommendations
- Purchase: Prioritize Shantui OEM undercarriage parts, check the part number (e.g., SD16 double-sided track roller 16Y-40-10000P010-01, track assembly 8203-MJ-371511-01), and ensure compatibility with the corresponding model. Avoid poor fit and accelerated wear caused by non-OEM parts;
- Maintenance: Regularly check track tension, add grease on time, and clean foreign objects on the wheel body and track; tighten the bolts of each component to avoid loosening; replace parts in a timely manner when abnormal wear or faults are found to prevent fault expansion.
As the core of the travel system, the quality of Shantui bulldozer undercarriage parts directly affects equipment operating efficiency and service life. Choosing OEM parts ensures precise fit, durability, and cost-saving, effectively reducing downtime and ensuring the smooth progress of engineering construction. We provide genuine Shantui undercarriage parts with full model compatibility, supporting global export and timely delivery.
