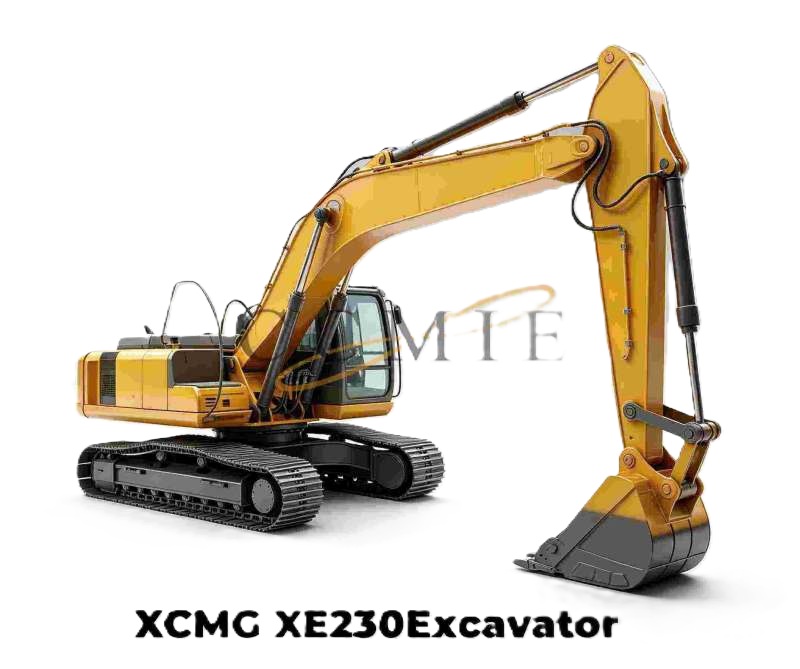

In the complete hydraulic system of the XCMG XE230CA excavator, the stick cylinder-Xcmg Parts is the core actuator that directly determines the digging force, motion accuracy, and construction stability of the equipment. Under harsh working conditions of heavy-load impact, high-frequency reciprocating motion, and dust and mud erosion, the original factory-installed cylinder is prone to wear, oil leaks, pressure loss, and stick drop, directly reducing construction efficiency and increasing equipment maintenance costs. The XE230CA 803072040 stick cylinder, as a dedicated original factory replacement part, precisely matches the equipment’s hydraulic parameters and installation structure, perfectly repairing equipment faults and restoring the overall machine’s operating performance. It is the preferred part for maintenance, overhaul, and performance upgrades of the 23-ton XCMG cylinder excavator.
I. Basic Product Overview
The XE230CA 803072040 excavator boom cylinder is a core hydraulic component originally supplied to the XCMG XE230CA medium-sized excavator. Specifically developed for heavy-duty operation of 23-ton class construction machinery, it serves as the core drive element for stick movement, directly controlling key operational actions such as digging, retraction, leveling, and backfilling. Part number 803072040 is precisely compatible with all XCMG XE230CA models, offering strong compatibility and zero-error adaptation. It is the preferred original equipment manufacturer (OEM) replacement for equipment overhauls, fault replacements, and performance upgrades.
Unlike ordinary general-purpose excavator hydraulic boom cylinders， this stick cylinder- Xcmg Excavator Spare Parts is designed in strict accordance with the ISO standard of the construction machinery hydraulic industry. It adopts a double-acting hydraulic structure, with balanced power for the stick’s forward and backward movement. It can perfectly adapt to the harsh working conditions of excavators, such as high-frequency start-stop, variable load impact, and continuous operation. It is widely used in earthwork construction, infrastructure excavation, site leveling, and light mining operations.
II. Core Product Advantages
a. Precise machine model matching, zero installation modification: Exclusively matched with XCMG XE230CA excavator, with original factory dimensions, mounting hole positions, and oil line interfaces completely aligned, supporting direct replacement in place without drilling or pipeline modification, significantly reducing equipment downtime for maintenance and adapting to various conventional construction conditions.
b. High-strength, wear-resistant material, durable and robust: The cylinder barrel is made of high-strength precision seamless steel pipe, and the piston rod undergoes high-frequency quenching and chrome plating for corrosion protection, resulting in high hardness, bending resistance, wear resistance, and rust resistance. Combined with imported composite sealing components, it effectively resists erosion from mud, dust, and sewage, eliminating common problems such as oil leakage and pressure loss, making it suitable for complex outdoor construction environments.
c. High-pressure stable output, high-efficiency operation: It is compatible with the original hydraulic system pressure of the equipment, has excellent pressure resistance, and can cope with digging impact, heavy load pressure holding and other working conditions. The stick movement is smooth and without jamming, and the response is rapid, which effectively improves the excavator’s operating efficiency and avoids problems such as power attenuation and slow movement.
d. Built-in buffer structure for strong protection: The cylinder is equipped with a precision buffer device at both ends, which can alleviate the hydraulic shock at the end of the stroke, reduce the mechanical wear of components such as cylinder body, pin, and connecting rod, reduce abnormal noise and vibration of the equipment, and extend the service life of the whole machine hydraulic system.
III. Common Faults and Replacement Scenarios
The XE230CA boom cylinder excavator operates at high frequency for extended periods, making the boom cylinder prone to aging and wear. If the following faults occur, the 803072040 original factory model cylinder must be replaced immediately:
a. The hydraulic cylinder for excavator has severe external and internal leakage, resulting in weak boom and failure of pressure holding, causing the boom to fall off when digging under heavy load;
b. The piston rod is scratched, corroded, or deformed, causing abnormal noises, vibrations, and jamming during operation;
c. Cylinder block cracking, buffer structure failure, significant hydraulic shock, and frequent damage to seals;
d. The performance of old hydraulic cylinders-Xcmg Excavatorparts deteriorates, resulting in a significant decrease in operating efficiency, an abnormal increase in fuel consumption, and a surge in maintenance frequency.
Replacing the original 803072040 boom cylinder-Xcmg Excavatorparts in a timely manner can quickly restore the equipment to its original operating performance, prevent secondary failures, and adapt to the needs of long-term continuous construction.
IV. Daily Maintenance Techniques
Proper maintenance can significantly extend the service life of the XE230CA 803072040 excavator boom cylinder and reduce operating costs: During daily operations, promptly clean mud and debris from the piston rod surface to prevent hard objects from scratching the sealing surface; regularly check the oil circuit sealing and hydraulic oil cleanliness, and replace the filter element and anti-wear hydraulic oil on time; avoid long-term overpressure and overload operation to reduce instantaneous hydraulic shock; when the equipment is shut down for a long time, retract the boom cylinder to protect the chrome plating layer of the piston rod and prevent rust and aging.
The XE230CA 803072040 boom cylinder on excavator boasts core advantages such as precise original factory fit, high strength and durability, stable high pressure, and outstanding cost-effectiveness, making it a crucial replacement part for maintenance of XCMG XE230CA excavators. Suitable for various small and medium-sized infrastructure, earthmoving, and mining construction scenarios, it effectively solves problems such as weak boom, oil leaks and pressure relief, and sluggish operation, ensuring efficient, stable, and long-term equipment operation. It is a reliable choice for maintenance and upgrades of construction machinery.
