Bucket 310902416 (1.4m³) for XCMG XE250E and XE240LC excavator spare parts

Bucket 310902416 (1.4m³) for XCMG XE250E and XE240LC excavator spare parts Featured Image
  • Bucket 310902416 (1.4m³) for XCMG XE250E and XE240LC excavator spare parts

Short Description:

Bucket 310704402 with part number XUGA215LJLKA00147 is an original‑standard digging bucket assembly for XCMG XE215CLL excavator. It adopts lightweight structure with reliable strength and good collision‑wear resistance, suitable for replacement and maintenance scenarios such as earth excavation, municipal trench operation and sand‑stone transportation.

Product Detail

Product Tags

description

Bucket 310902416 (1.4m³) is original complete bucket assembly for XCMG XE250E and XE240LC excavators. It is integrally welded of high‑strength wear‑resistant alloy steel plates, with reinforced treatment on lugs, bucket bottom plate, side plates and cutting edge. The complete assembly includes bucket teeth, tooth holders and side guard plates. Strictly following original mounting dimensions, its lug spacing and pin‑hole parameters perfectly fit machine dipper arm and connecting rod for convenient disassembly and replacement. Widely used in infrastructure earthwork, site leveling, sand‑stone loading and construction waste clearance, it is a mainstream wearing component for 24‑25‑ton‑class excavators.

product parameters

  • Part No.: 310902416
  • Nominal Bucket Capacity: 1.4m³
  • Reference Drawing No.: A310901184_20180101
  • Applicable Model: XCMG XE250E, XE240LC Excavator
  • Assembly Weight: 1063kg

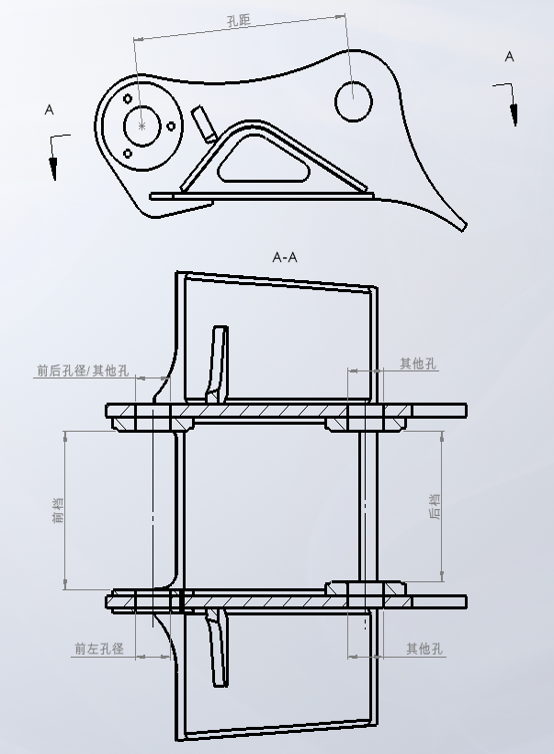

  • Front Lug Spacing: 430mm
  • Rear Lug Spacing: 410mm
  • Front‑left Bore Diameter: 80mm
  • Other Bore Diameter: 80mm
  • Lug Hole Center Distance: 475mm
  • Reference Cutting Edge Width: 1220mm
  • Applicable Materials: Common earth‑rock, sand‑stone aggregate, weathered broken stone, backfill muck, construction debris
  • Welding Technology: Multi‑axis continuous automatic robotic welding
  • Material: High‑strength wear‑resistant alloy steel
  • Supply Scope: Complete bucket assembly, including bucket teeth, tooth holders and side guard plates
  • Structure Type: Standard earth‑moving digging bucket
Bucket body 310504111 for XCMG XE135D excavator spare parts

advantage

• Original mounting dimensions compatible with XE250E and XE240LC. No on‑site secondary cutting or reaming, fast and easy alignment during installation.

• Wear‑resistant alloy steel main‑body with stress‑reinforced cutting edge and side plates, resisting impact and collision from earth and aggregate, slowing wear and deformation under normal operation.

• Formed by multi‑axis robotic welding with sufficient penetration on key load‑bearing welds, even and full bead appearance, lowering weld‑crack risk during long continuous shifts.

• Thickened reinforced lug‑seat ensures balanced force on pin shaft, alleviates local eccentric wear of pin holes and reduces impact noise caused by excessive bushing clearance.

• Reasonable arc‑shaped bucket cavity allows smooth material sliding with little inner‑wall adhesion, effectively improving digging and loading efficiency for soil and loose rock.

FAQ

Q: Can bucket 310902416 (1.4m³) be directly fitted on XE250E / XE240LC?

A: It is designed for XE250E and XE240LC with matched interface dimensions. Install matching pins and bushings, make sure tight connection before earth‑moving work.

Q: Can this earth bucket work continuously on solid large hard rock?

A: It is optimized for earth‑rock, sand‑stone and weathered gravel. Reinforced rock bucket is recommended for solid hard rock to avoid overload damage.

Q: What are key points for bucket daily maintenance?

A: Regularly inspect welds, side plates and cutting edge for deformation or cracks; replace over‑worn teeth timely; lubricate pins and bushings periodically to minimize pin‑hole wear.

warehouse

We have built four spare parts warehouses in Xuzhou, Jining, Kunshan and Changsha to provide customers from all over the world with a variety of high-quality spare parts. We can basically ship self-provided spare parts within three days after confirming the order. If the spare parts need to be adjusted or processed, they will be shipped within 7-30 days.

our warehouse

our warehouse

Pack and ship

Pack and ship
