225703113 air inlet pipe for XCMG XP203 pneumatic-tyred roller

Short Description:

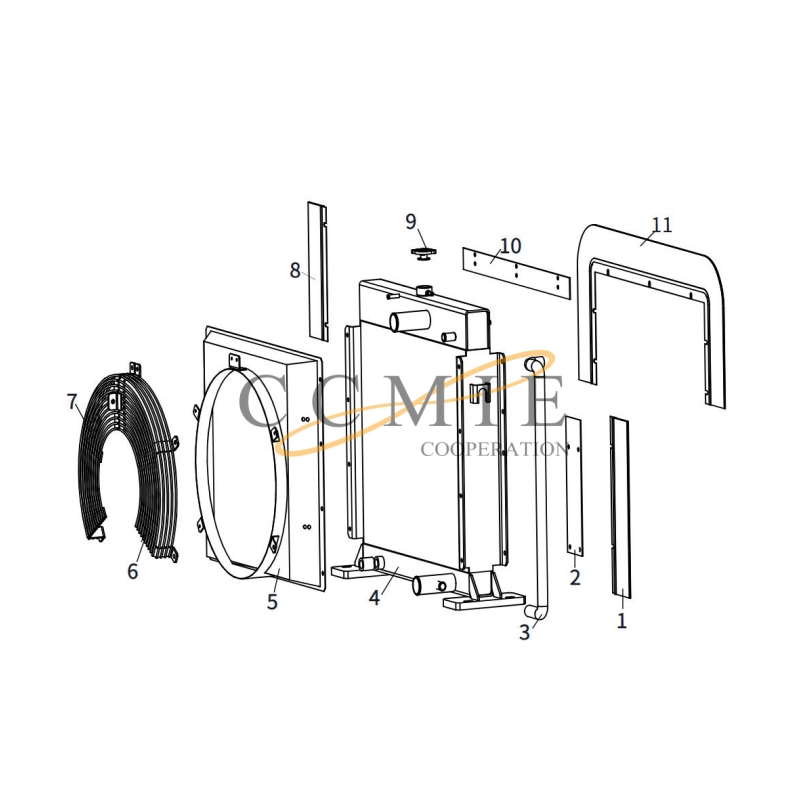

800354694 Radiator Assembly is a dedicated engine heat dissipation component for XCMG XP203 pneumatic tyre roller. It adopts dense high-efficiency heat dissipation fins and integrated sealing structure, featuring fast heat dissipation, high structural rigidity and strong anti-clogging performance. It effectively reduces engine operating temperature, maintains stable thermal balance of the cooling system, and ensures continuous and efficient operation of the equipment under heavy-load and high-temperature construction conditions.

Send email to us

Product Detail

Product Tags

description

Part number: 225703113
Part name: air inlet pipe
Unit name: power system
Applicable Models: XCMG XP203 pneumatic-tyred roller

Number	Parts Name	Quantity	Material Encoding
1	AIR CLEANER	1	800104099
860156279	Air filter (custom spare parts) Original 800104099	1	860156279
2	RONDELLA	2	225701142
3	CLIP	2
4	BOLT M8×40	2	805046513
5	NUT	2	805046477
805238378	NUT	2	805238378
6	BOLT	3	805048008
7	NUT M10	3	805238533
8	AIR FILTER BRACKET	1
9	BOLT M10×25	1	805004763
10	HOSE CLAMP	2	800151585
11	PIPE	1	225701139
12	φ106-114	1	801902893
13	AIR INLET PIPE	1	225703113
14	T-HOLDER Φ85-93	1	801902825

FAQ

1. What is the core function of 225703113 air inlet pipe?
This air inlet pipe acts as a professional air delivery channel, transporting purified air to the engine cylinder, ensuring reasonable air-fuel ratio, improving combustion efficiency and maintaining stable engine power performance.
2. What performance advantages does this 225703113 air inlet pipe have?
It adopts high-quality flexible and rigid composite structure, with smooth inner wall to reduce air intake resistance. The pipe body resists high temperature, aging and deformation, and the sealed interface effectively prevents foreign air from entering, adapting to long-term vibrating operation.
3. Can this 225703113 air inlet pipe be installed directly without modification?
Yes. The pipe length, caliber size, interface specification and fixing hole positions fully conform to OEM original standards, supporting accurate docking and direct assembly without cutting or secondary adjustment.
4. What problems will be caused by damaged or aging air inlet pipe?
Aging, cracking or loose sealing of the pipe will cause air leakage and unfiltered air inhalation, resulting in insufficient engine power, increased fuel consumption, abnormal exhaust, and accelerated internal engine wear.
5. When should the 225703113 air inlet pipe be replaced?
Replacement is required when the pipe body is cracked, hardened and aged, severely deformed, poorly sealed with air leakage, or the inner wall falls off and blocks the air passage.
6. How does this 225703113 air inlet pipe improve construction efficiency?
It maintains stable and unobstructed air intake volume, ensures sufficient engine power output at all times, avoids power weakness and frequent speed drop, and guarantees continuous and efficient construction operation.
7. What daily maintenance helps extend the service life of the air inlet pipe?
Regularly check the pipe body for cracks and air leakage, fasten the hoop joints regularly, avoid excessive extrusion and bending, and keep the pipeline surface clean and free from high-temperature baking.
