Asphalt concrete mixing plant

Short Description:

The concrete mixing plant is mainly composed of 5 major systems including mixing host, material weighing system, material conveying system, material storage system and control system and other auxiliary facilities. Compared with the aggregate measurement of the station, the building aggregate measurement reduces four intermediate links, and the vertical discharge measurement saves the measurement time, thus greatly improving the production efficiency.

Send email to us

Product Detail

Product Tags

products description

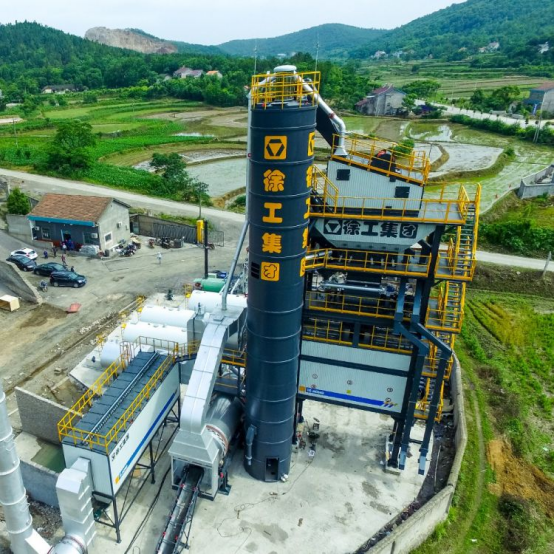

80t/h XAP80 mini containerized asphalt mixing plant

XAP80 asphalt mixing equipment is a modern advanced product in domestic developed by based on the introduction of advanced and mature technology from Europe.
The equipment can produce various grades of asphalt mixture, modified asphalt mixture and warm mix asphalt Materials, etc., and it can also be used matching with thermal regeneration equipment and foam asphalt equipment, to fully meet the needs of grade highway, municipal roads, freight yard and other engineering.
A number of inventions and utility model patents have been obtained and applied to XAP80 asphalt mixing equipment.
The equipment is equipped with screening precision control technology, secondary weighing asphalt technology, cauldron slow mixing, intelligent feeding material compensation technology, PID control and expert control technology, optimized combination of secondary dust removal technology and so on, which highlights the core features such as economy, reliability, advancement and intelligence of asphalt mixing equipment.

Description	Unit	Parameter value
Rated production rate	t/h
	t/h	80
	t/h
Mixing capacity	kg /batch	1250
Fuel consumption rate	kg/t	≤6.5
Dust emission concentration (bag dust)	mg/Nm³	≤20(Washing material)
Blackness of exhaustion(Ringelman Level)	Level	≤I
Static measurement accuracy	Aggregate	±0.3 %
	Powder	±0.3 %
	Asphalt	±0.2 %
Dynamic measurement accuracy	Aggregate	±2.5 %
	Powder	±2.5 %
	Asphalt	±2.0 %
Total installed power	kW	274
Maximum stand-alone power	kW	55
Occupied area	m2	812(29m×28m)

HZS120K 120m3 concrete batching plant

HZS series concrete mixing plant belongs to compulsory and efficiency equipment. It includes JS concrete mixer, PLD batching machine,cement silo,conveying system and control system.And also has the characteristic of mixing well, high productivity, highly automated, high flexibility, convenient operation, and good stability.

Concrete mixing plant concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station, etc. They can also be used in fibre reinforced concrete unit factories and used as commercial cyclone cement concrete mixing plant to sell high quality concrete to different buyers.

Items	Unit	HZS120/2HZS120
Theoretical productivity	m3/h	120/240
Dump height	m	4
Model of main mixing machine		MAO3000/2000
Mixing power	kW	2X37
Nominal volume of main mixing machine	L	2000
Production cycle	s	60
Aggregate diameter	mm	≤80
Aggregate bin volume	m3	4X25
Powder bin (optional)volume	t	4×200
Batching plant capacity	L/bin	3200
Inclined belt conveyor capacity	t/h	900
Concrete spiral conveyor capacity	t/h	90
Coal ash spiral conveyor capacity	t/h	60
Standard installed capacity	kW	210/420
Weighing range & accuracy of sand/stone	kg	(0~3600)±2%
Weighing range & accuracy of cement	kg	(0~1000)±1%
Weighing range & accuracy of coal ash	kg	(0~500)±1%
Weighing range & accuracy of water	kg	(0~500)±1%
Weighing range & accuracy of additives	kg	(0~50)±1%

We also have other models of HZS series, like HZS30, HZS40, HZS60KY, HZS75, HZS90K, HZS100, HZS120K,HZS150KG, HZS240KG, etc.

If you would like to to know more details and products, please contact us!
