Chinese 4cbm to 12cbm cement concrete mixer truck

Short Description:

The concrete mixer truck is a special truck used to transport concrete for construction; because of its shape, it is also often called a snail truck. This type of truck is equipped with a cylindrical mixing drum to carry the mixed concrete. During transportation, the mixing drum will always be kept rotating to ensure that the carried concrete will not solidify. After the concrete is transported, the inside of the mixing drum is usually washed with water to prevent the hardened concrete from occupying space and make the volume of the mixing drum less and less.

Send email to us

Product Detail

Product Tags

products description

12CBM G12K volumetric concrete mixer truck

On the basis of in-depth and integrative research on the industry, the XCMG new generation truck mixers are system optimized by taking the integrated modularization design to truly realize the integrated innovation.2. Particular mixing technology with continuous trace,original double log spiral technology with changeable lift angle and changeable screw pitch and optimized auxiliary blades and pressure-reducing hole design can make the operation path of the spiral in perfect state and can ensure the best concrete flowing trend in mixing drum and more uniformly discharging.3. Twin-output control, lightweight technology and anti-scattering technology make the vehicle more environmental and more effective.
4. Optimized chassis matches with upper parts and such parts as front base and accessory beam, rear base and tilted beam, rear base and accessory beam adopt integration design. After force bearing research and analysis and long-term application, the best position of the connecting point between tilted beam and rear base are confirmed and thus deformation and break of cross beam can be avoided effectively.

5. Internationally branded hydraulic transmission system: Hydraulic pump, motor and speed reducer of such world-famous brands as ZF, Rexroth, Bonfiglioli, PMP, TOP are adopted to make the power more sufficient, system more steady and reliable and service life longer.

Description	Unit		Parameter value
Performance of mixing drum	Geometric volume	m³	19.5
	Max. diameter of drum	mm	2380
	Drum length	mm	5967
	Mounting tilt angle	°	12
	Rotary speed	r/min	0~14
	Charging speed	m³/min	≥3
	Discharging speed	m³/min	≥2
	Residual ratio of discharging	%	<0.7
	Range of slump	cm	5~21
Water supply	Volume of water tank	L	450
Water supply	Way of water supply		Air pressure
Overall machine	Chassis brand		Sinotruck
	Chassis model		ZZ1257N4048W
	Steering wheel		Left steering wheel
	Curb mass	kg	15870
	Driving type		6×4
	Wheelbase	mm	4025+1350
	PTO way		Flywheel PTO
	Outline dimension (L×W×H)	mm	9850×2500×3980
Engine	Model		WD615.47
	Rated power	Kw/r/min	273
	Displacement	L	9.726
	Emission standard		ChinaⅡ

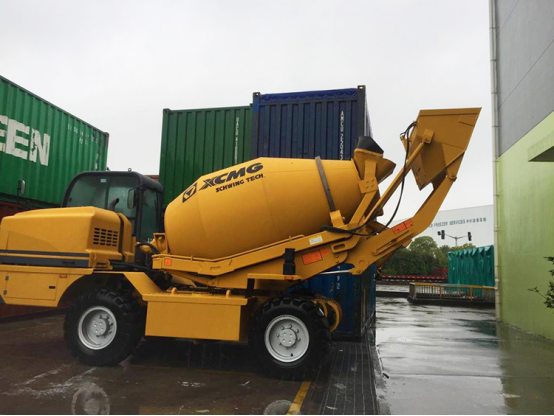

5m3 Self Loading Truck Concrete Mixer SLM4

XCMG SLM4 self loading concrete mixer is a new 4-cube concrete mixer developed by XCMG, with a maximum driving speed of 30km/h and a production efficiency of about 12-14m3/ h. All bucket action through the pilot handle to achieve.

1 Multi-function integration:

Self loading concrete mixer is a kind of equipment combining the functions of existing concrete transport truck and mixing station. It can complete loading, measuring, mixing and unloading, and can realize transportation and on-site construction.

2 Hydrostatic transmission: The vehicle is four-wheel drive, so that the mixer can also produce concrete in bad working conditions, to ensure the work efficiency;

3 Weighing system: The aggregate is weighed in the loading process to ensure that the required concrete can be produced and the production efficiency can be improved with the weighing accuracy within 3%.

Model	YCD4J22G
Total displacement, no Cylinders	4330cc-4 in line
Injection	direct with mechanical control
Cooling	water, dry air filter
Max. power	85Kw(116Hp)
Max. torque	390Nm@2800rpm
Alternator	28V–1500Wa (53.5A)
Battery	2×12V–100AH (453A)
Fuel tank	240liters
Total hydraulic system capacity	200 liters
Engine oil	16 liters
Operating weight	8500 kg
Max gross weigh	18100 kg
load-carrying capacity	9600 kg
6DIMENSIONS	6200 × 2900 × 3260 mm

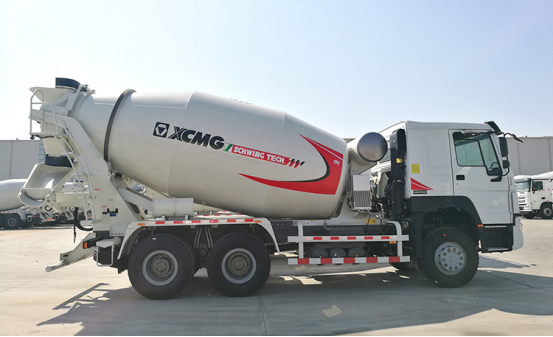

10CBM G10K concrete mixer truck

XCMG new generation truck mixers are system optimized by taking the integrated modularization design totruly realize the integrated innovation.

Description	Unit		Parameter value
Performance of mixing drum	Geometric volume	m³	16.8
	Max. diameter of drum	mm	2280
	Drum length	mm	5596
	Mounting tilt angle	°	13.5
	Rotary speed	r/min	0~14
	Charging speed	m³/min	≥3
	Discharging speed	m³/min	≥2
	Residual ratio of discharging	%	<0.7
	Range of slump	CM	5~21
Hydraulic system	Oil pump		World-famous brand
	Motor		World-famous brand
	Speed reducer		World-famous brand
	Hydraulic circuit		Closed type
Water supply	Volume of water tank	L	450
Water supply	Way of water supply		Air pressure
Overall machine	Chassis brand		XCMG
	Chassis model		NXG3250D5NCX
	Steering wheel		Left steering wheel
	Curb mass	KG	14600
	Driving type		6×4
	Wheelbase	mm	3800+1350
	PTO way		Flywheel PTO
	Outline dimension	(L×W×H)mm	9510×2500×3970
Engine	Model		WP10.350E53
	Rated power	Kw/r/min	257
	Displacement	L	9.726
	Emission standard		Euro V

If you would like to know more models and details, please contact us!
