Chinese 6×4 8×4 dump truck and mining dump truck

Short Description:

We supply Chinese famous brands dump truck, like XCMG, Dongfeng, HOWO, etc.




Product Detail

Product Tags

products description

Dump truck refers to a vehicle that unloads goods by hydraulic or mechanical lifting. It is composed of automobile chassis, hydraulic lifting mechanism, cargo compartment and power take-off device.

There are two types of dump truck compartments: backward tipping and side tipping. The piston rod movement is controlled by the control system. Backward tipping is more common. Pushing the piston rod causes the truck to tip over, and a few have two-way tipping.

In civil engineering, dump trucks often work in conjunction with excavators, loaders, belt conveyors and other engineering machinery to form a loading, transporting, and unloading production line to carry out the loading and unloading of earth, sand, and bulk materials.

detail information

XCMG XGA3250D2KC 6×4 dump truck 370 HP

Advantages and Highlights:

* T-series tipper have excellent performance at heavy load and could apply to multiple working condition. Our product aims to achieve the integration of economical efficiency, safety, reliability, and practicability.

* In view of the dump truck work environment, the design of the power, transmission, axles, chassis and suspension system are optimized. The vehicle adopts the finite element simulation analysis and optimization, to achieve the best system matching of high power, high reliability and high economic.

Description Unit Parameter value
Overall size mm 8710*2500*3267
Cargobody size mm 5800*2300*1500
Wheelbase mm 3850+1350
Wheel tread (Front/Rear) mm 2060/1860
Min. ground clearance mm 281
Kerb mass kg 15620
Gross vehicle weight kg 40000
Rated loading capacit kg 25000
Max. travel speed km/h 79
Min. turning diameter m 17
Max. gradeability % 39

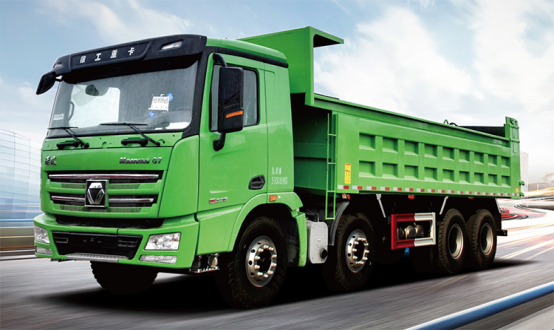

XCMG XGA3310D2KE 8×4 dump truck

Advantages and Highlights:

Comfortable Driving, Pleasant Enjoyment

* Symmetrical, refined, excellent and ergonomic design, facilitates your driving operation; covering fttings adopt leather package, strong light absorption, no high-light points, reduce visual fatigue.

* Multi-functional configuration, large storage space; strictly control the gap and chromatism, meticulous work; silkstocking airbag seats.

Maximum Supporting capacity and practicability

* Golden power assembly-For the economic and reliabilit, reliable brands engine, Fast gearbox, Steyr axles are adopted for our manufacturing. The range of power output are from 280hp to 420hp to achieve multi-working-condition.

* Modular designed chassis, neat arrangement highly universalizable. Meanwhile, the reliability and convenience of maintenance have been improved.

* HANVAN is the industry leader of Chinese heavy- -duty truck market, we provide standard model, composite model, heavy model, super -duty model for your personal needs.

* The key part have been optimized by CAE and passed relative quality test, the reliability of vehicle can be guaranteed.

Dimensions(mm) Overall size (length×width×height) 8710×2500×3267
Wheelbase 3850+1350
Wheel tread (Front/Rear) 2060/1860
Min. ground clearance 281mm
Weight(kg)
Gross vehicle weight 65000
Rated loading capacity 47840
Performance Max. travel speed 79km/h
Min. turning diameter 17m
Max. gradeability(%) 39%
Approach angle 25°
Departure angle 20°

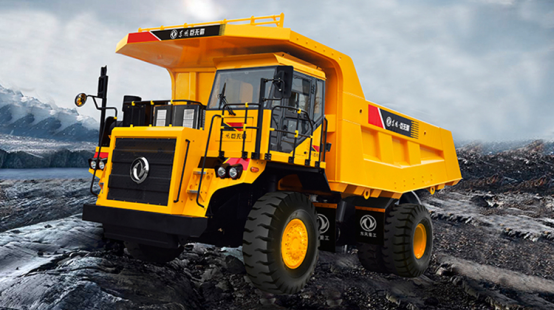

Dongfeng hybrid mining dump truck 45 ton DF45E

DF45E Hybrid mining dump truck is the world’s largest Hybrid mining truck so far. The Hybrid mining truck can save the fuel 50%-70% than general truck at complex mining area.Using the fuel-efficient mining truck, the original loss of mine transportation projects may become profitable.

We supply Chinese famous brands’ dump truck, like XCMG, Dongfeng, HOWO, etc.

If you would like to know more details and products, please contact us!
