Sanitation truck road sweeper garbage truck watering cart

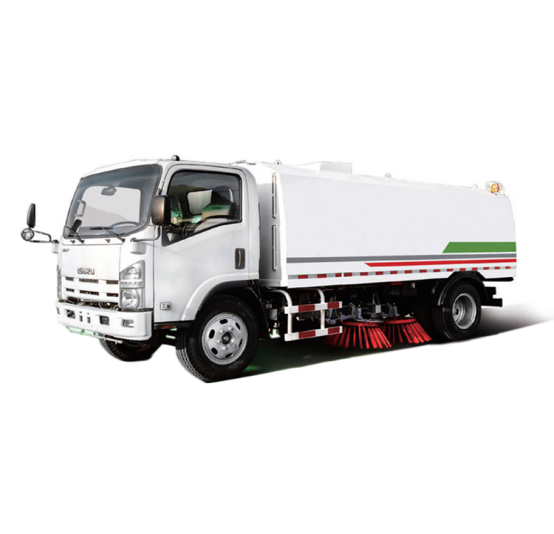

street sweeper
- Our street sweeper is equipped with two filters of primary filter and stainless steel filter, which is very convenient for quick cleaning without any tools.
2. You just need a wrench and then you can dismount all the mechanical parts of our sweeper, which is very convenient for maintenance.
3. The front sweeper brush is equipped with fender system to prevent damage of brush when accident impaction happens.

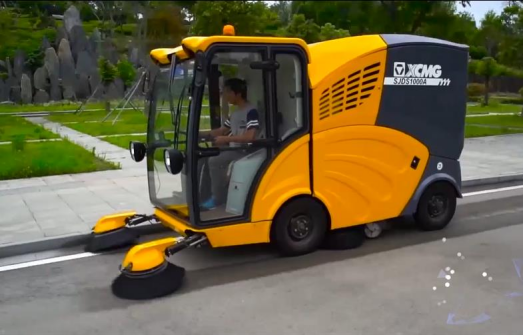

4. The sweeper can dump trash into the road standard trash containers and therefor it can keep continuous working.Small road sweeper:
| Items | Unit | Number | |
| The host | Engine model | - | Perkins 403D-15 |
| Engine power rating | kW | 24.4 | |
| Engine rated speed | r/min | 2800 | |
| Engine idle speed | r/min | 800 | |
| Maximum speed | km/h | 20 | |
| Maximum astern speed | km/h | 10 | |
| Capable of climbing with slope | % | 22 | |
| Fuel tank capacity | L | 60 | |
| Wheelbase | mm | 1250 | |
| Wheelbase | mm | 860 | |
| Turning radius (outside) | mm | 1880 | |
| Minimum ground clearance | mm | 140 | |
| Front overhang | mm | 810 | |
| Rear overhang | mm | 560 | |
| Approach angle | ° | 20.7 | |
| Departure angle | ° | 27.7 | |
| 2 Brush the maximum sweep width | mm | 1200 | |
| 3 Brush the maximum sweep width | mm | 2100 | |
| Brush diameters | mm | 600 | |
| Maximum volume of dustbin | L | 500 | |
| Bin effective volume | L | 230 | |
| Bin unloading height | mm | 1380 | |
| Water tank volume | L | 120 | |
| Host suction diameter | mm | 150 | |
| Handheld suction diameter | mm | 120 | |
| Maximum sweeping speed | km/h | 6 | |
| Curb weight | kg | 1250 | |
| GVW | kg | 1800 | |
| Overall dimensions | mm | 3865×1150×1990 | |
| Hydraulic system | Hydraulic tank capacity | L | 20 |
| Electrical system | Operating system voltage | V | 24 |
Other models:

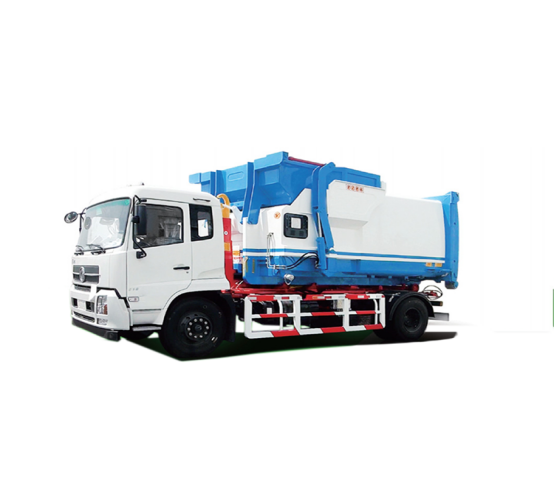

garbage truck
Van unloading type garbage truck including 3T/16T/25T/31T series, the chassis covers domestic famous brands. The top part is mainly composed of a boom, a sub-frame, a removable garbage bin, a power take-off device, a hydraulic system and a circuit. The boom is controlled by the oil passage, and the loading and unloading of the waste bin is realized during the lifting and lowering process of the boom.

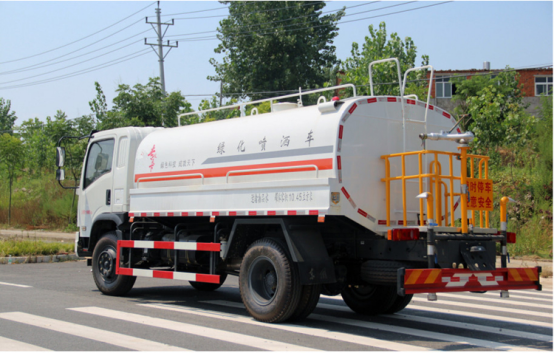

road spray sprinkler
Dust control water truck is designed with water sprinkle and dust control functions and has cold starting device at low temperature and air conditioner, which is mainly applied to municipal sanitation, environmental protection, dust control and lower temperature in mine, yard coal, wharf, steel works, construction sites and so on. Besides, the truck can be used to clean and remove snow in winter.
We also have other kinds of sanitation trucks. If you would like to know more details and products, please contact us!
