With our superb management, potent technical capability and strict quality command procedure, we go on to provide our shoppers with trustworthy high-quality, reasonable costs and outstanding services. We goal at becoming considered one of your most trustworthy partners and earning your pleasure for Sinotruk Engine Parts, Cat Excavator Hydraulic Pump, Liugong Wheel Loader Parts, With superb service and quality, and an enterprise of foreign trade featuring validity and competitiveness, that will be trusted and welcomed by its clients and creates happiness to its employees.
2021 High quality Xcmg Crawler Crane - Sanitation truck road sweeper garbage truck watering cart – CCMIC Detail:

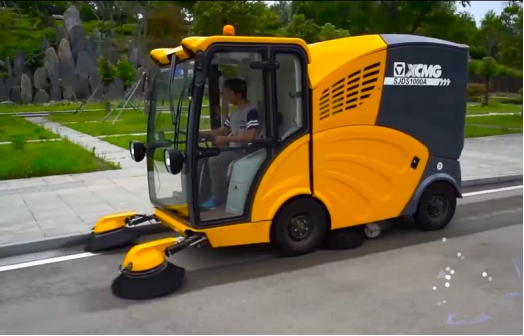

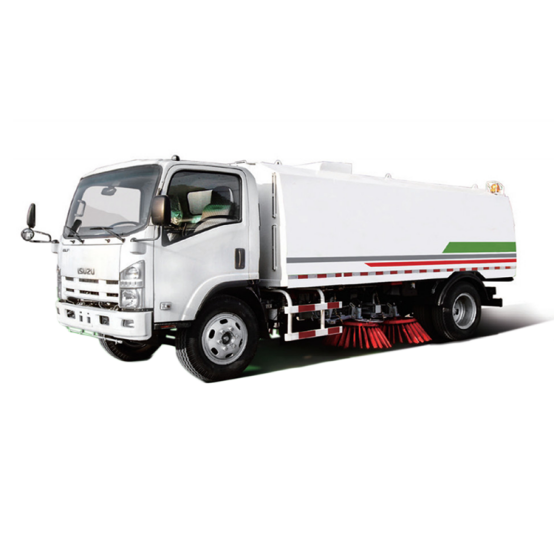

street sweeper



  1. Our street sweeper is equipped with two filters of primary filter and stainless steel filter, which is very convenient for quick cleaning without any tools.
    2. You just need a wrench and then you can dismount all the mechanical parts of our sweeper, which is very convenient for maintenance.
    3. The front sweeper brush is equipped with fender system to prevent damage of brush when accident impaction happens.
    4. The sweeper can dump trash into the road standard trash containers and therefor it can keep continuous working.



    Small road sweeper:



Items Unit Number

The host

 Engine model - Perkins 403D-15
Engine power rating kW 24.4
Engine rated speed r/min 2800
Engine idle speed r/min 800
Maximum speed km/h 20
Maximum astern speed km/h 10
Capable of climbing with slope % 22
Fuel tank capacity L 60
Wheelbase mm 1250
Wheelbase mm 860
Turning radius (outside) mm 1880
Minimum ground clearance mm 140
Front overhang mm 810
Rear overhang mm 560
Approach angle ° 20.7
Departure angle ° 27.7
2 Brush the maximum sweep width mm 1200
3 Brush the maximum sweep width mm 2100
Brush diameters mm 600
Maximum volume of dustbin L 500
Bin effective volume L 230
Bin unloading height mm 1380
Water tank volume L 120
Host suction diameter mm 150
Handheld suction diameter mm 120
Maximum sweeping speed km/h 6
Curb weight kg 1250
GVW kg 1800
Overall dimensions mm 3865×1150×1990
Hydraulic system Hydraulic tank capacity L 20
Electrical system Operating system voltage V 24



  Other models:

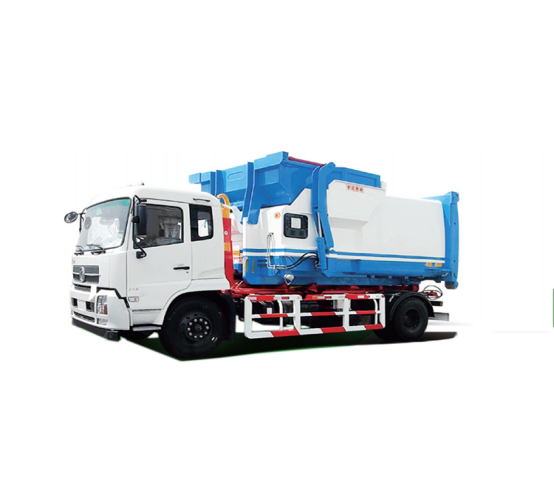

garbage truck

Van unloading type garbage truck including 3T/16T/25T/31T series, the chassis covers domestic famous brands. The top part is mainly composed of a boom, a sub-frame, a removable garbage bin, a power take-off device, a hydraulic system and a circuit. The boom is controlled by the oil passage, and the loading and unloading of the waste bin is realized during the lifting and lowering process of the boom.

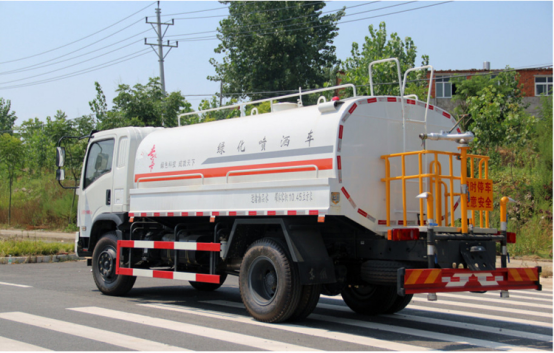

road spray sprinkler

Dust control water truck is designed with water sprinkle and dust control functions and has cold starting device at low temperature and air conditioner, which is mainly applied to municipal sanitation, environmental protection, dust control and lower temperature in mine, yard coal, wharf, steel works, construction sites and so on. Besides, the truck can be used to clean and remove snow in winter.



We also have other kinds of sanitation trucks.  If you would like to know more details and products, please contact us!
