Dump tipping semi-trailer 2 to 3 axles
product description
A semi-trailer is a trailer whose axle is placed behind the center of gravity of the vehicle (when the vehicle is evenly loaded) and is equipped with a coupling device that can transmit horizontal and vertical forces to the tractor. Semi-trailers are generally three-axle semi-trailers, which are divided into eleven-meter warehouse semi-trailers, 13-meter warehouse semi-trailers, and low-flat semi-trailers. It is a heavy-duty transportation vehicle connected with the semi-trailer head through the towing pin.
detail information

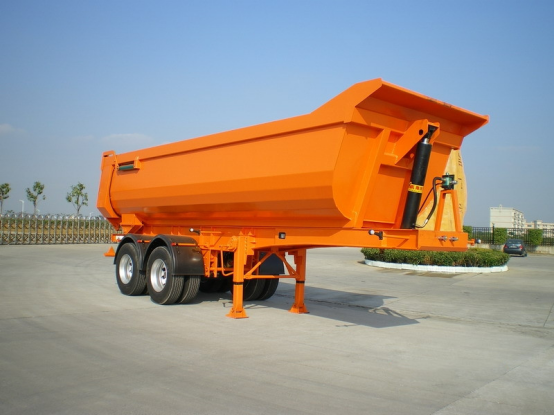

35CBM U-Shape Dump Tipping Trailer with Two-axles
Dimension
Length: Approx 10,990 mm
Width: Approx 2,498 mm(including mud guard)
Height: Approx 3,541mm @ unload
King Pin Location: Approx 950mm from the front face of the front bolster
Axle spacer: Approx 6,050 mm+1350mm
Landing Gear location: 2,550mm behind the king pin location(no confirm)
Fifth wheel (King Pin) Height: Approx 1,271mm with the chassis level(no confirm)
Capacity: 35CBM
(The above dimension will be adjusted according to the tractor specification.)
Weight:
Tare Weight (Tolerance 0~-4%): Approx 11,400 kg
Max. Payload: Approx 35,000 kg
Gross Vehicle Weight: Approx 46,400 kg
Steel Structure:
Material: High strength low alloy steel (700 MPa) and (350 MPa)is used for welded I-beam and (235MPa) is used for welded fabricated parts.
Carriage box: All welded steel structure, flooring thickness 6mm, Side & front wall thickness 4mm re-enforced, with full welded stiffeners. Tail door is top hinged with spring loaded auto locking device.

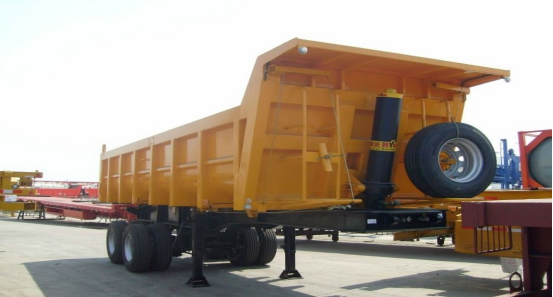

Chengli 2 axle DUMP SEMI TRAILER
| Suspension | Mechanical suspension |
| Leaf spring | Leaf spring 7 pcs |
| Floor and side wall | Not include |
| Tire | 12R22.5 8 pcs |
| Wheel rim | 9.0 |
| Kingpin | 2’’ bolt-in king pin |
| Landing gear | two-speed,manual operating ,heavy duty landing gear 24t |
| Cylinder | HYVA |
| Vehicular applications | Sand and pebble and mineral transport |
| Drawing | Including |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |

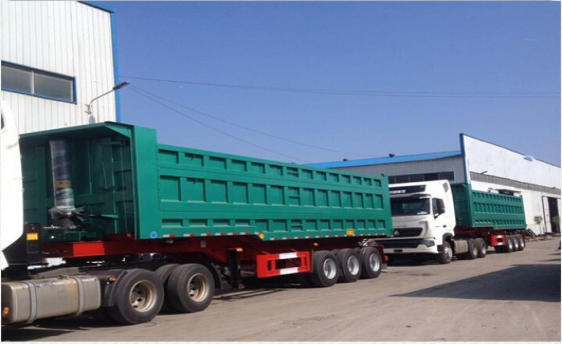

Heli 3 axle semi-trailer
| Product type | HLQ9401 dump semi trailer |
| Outside dimension(mm) | Length:11000,width:2500 height:3600 |
| Inside dimension(mm) | Length:10050, width:2340 height:600 |
| Gross weight(kg) | 542000 |
| Tare weight(kg) | 9200 |
| wheelbase(mm): | 5630+1310+1310 |
| Loading capacity(kg) | 45000 |
| Axles | 3 pieces,13 T/piece, Fuwa brand or BPW brand |
| ABS system | with |
| Front/rear suspension(mm) | -/1450 |
| Approach/departure angle | -/21 |
| the No. of spring leaves | -/10/10/10, |
| Rim | 8.25×22.5/9.00×22.5 China brand |
| King pin | 50#or90# China brand or JOST brand |
| Support legs | 28tons, China brand or JOST brand |
| Twist lock | 8or12pieces |
| The material of main beam | The height of the beam is 500 mm, upper plate is 14 mm, down plate is 16 mm, middle plate is 6+6mm, made of Q345steel |
| Brake Chamber | 6 double-chambers, China brand or WABCO brand |
| Electrical System | 24V,7 wire harness |
| Tool box | One piece or according to requirement of the buyer |
| Painting | 1 coat of anticorrosive prime,2 coats of final paint |
| Rear wheeltrack(mm) | 1840/1840/1840 |
| Tire specification | 12pieces,11.00R20 12PR,12R22.5 12PR |
| Axle load | -/24000(with three-axles) |
| VIN No. | LA965RZC***SYL*** |
| Reflective warning signage | Manufacturer: 3MReflective Material Co., Ltd. |
| Others | 1. Rear dump semi trailer.2. ABS system 3.Under-run protector: with the material of Q235B,be welding with the main body. 4. Rear under-run protector:the height above the ground is 500mm |
We supply Chinese famous brands’ semi-trailers. If you would like to know more models and details, please contact us.
