0.5ton to 39ton single double drum compactor road roller

Short Description:

We can supply all the models of XCMG and JUNMA road rollers. If you would like to know more details and products, please contact us!

Send email to us

Product Detail

Product Tags

product description

Road roller, also known as soil compactor, is a kind of equipment for road repair. Road rollers belong to the category of road equipment in construction machinery. They are widely used in filling compaction operations of high-grade highways, railways, airport runways, dams, stadiums and other large-scale engineering projects. They can compact sandy, semi-cohesive and cohesive soils. Subgrade stabilized soil and asphalt concrete pavement layer. The roller is suitable for various compaction operations by the gravity of the machine itself, so that the compacted layer is permanently deformed and compacted. Road rollers are divided into two types: steel wheel type and tire type.

details information

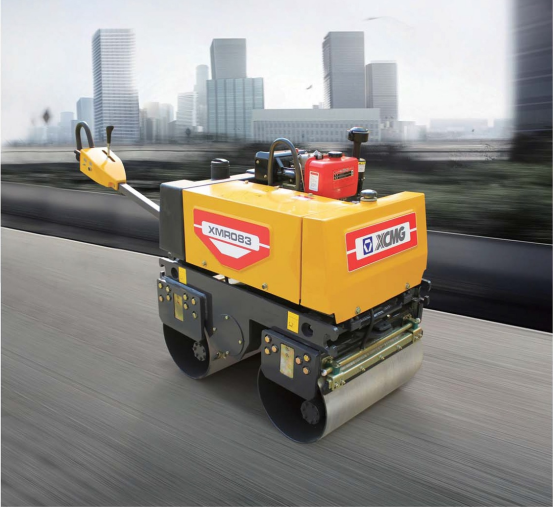

0.8ton small road roller XMR083

XMR083 is walk-behind double drum vibratory roller with operating mass of 0.8 tons, has features such as electromagnetic vibration, valve control hydraulic steering and comfortable operation. It is mainly used for compacting asphalt concrete surface layer, especially for urban roads, stadiums and other minor works. Can also be used for small and medium base, sub base and compacted materials. Has good edge compaction performance, in narrow job sites and groove-based shows its unique advantages.

Performance Characteristics:

* The walk behind roller relies on manual steering which is strenuous and strong labor intensity, an auxiliary steering pump is used to provide oil source. Control the three-position four way solenoid directional valves group to achieve the extension of steering cylinder, and control the steering of whole vehicle, ensure the machine manipulation is free and flexible.

* Tandem type closed hydraulic system consists of piston pump and two cycloid motors, can effectively prevent slip of drive wheel, cycloid motors drive the vehicle through wheel reducer by reducing the speed and increase the torque, so that the machine has excellent grade ability and drive ability.

* Positioning device is formed by plug screw, spring, spring seat and steel ball, positioning bolt and umbrella-type plate, in the neutral position of umbrella-type plate is ball socket, when the plate is in middle position, the vehicle is in stationery status, the steel ball press into the ball socket, and it is always rolling friction between steel ball and umbrella plate, this device is simple, positioning reliable and service-free.

* The nether frame and steering frame are connected by pivotal bearing, ensuring the compact structure of whole machine, good maneuverability, small in size and easy maintenance.

Item	XMR083
Operating mass	800kg
Drum diameter	400mm
Drum width	708mm
Speed range	0～3.6km/h
Theoretical gradeability	30%
Minimum turning radius	3135mm
Minimum ground clearance	250mm
Wheel base	720mm
Steering angle	±15°
Vibrational frequency	55Hz
Nominal amplitude	0.32mm
Exciting force	15.8kN
Engine type	186F
Rated speed	2600r/min
Engine rated power	5kW
Engine fuel consumption	280g/kW.h
Overall dimension(length× width× height)	2695×760×1200mm
Hydraulic tank volume	16L
Diesel tank volume	5.5L
Water tank volume	40L

4ton mini manual road roller compactor XMR403

XMR403 is a light vibratory roller with operating weight of 4 tons. This machine is suitable for surface and edge compaction construction for asphalt engineering, cement engineering and So on, also suitable for sub-base and base, sand and gravel material compaction work, is the idealist compaction machinery for all sorts of parking lot construction, road, sidewalks and bikeway compaction, as well as a variety of road maintenance engineering.

Item	Unit	XMR403
Operating mass	kg	4000
Static linear load (front drum/rear drum)	N/cm	157/157
Vibrational frequency	Hz	60
Amplitude	mm	0.41
Exciting force	kN	42
Vibrating drum (Diameter x width)	mm	800×1300
Theoretical gradeability	%	30
Operating speed	km/h	0~10.6
Wheel base	mm	1920
Steering angle	°	±30
Swing angle	°	±10
Minimum turning radius	mm	3062 / 4362
Minimum ground clearance	mm	348
Engine type		ZN490B
Rated power	kW	36
Rated speed	r/min	2600

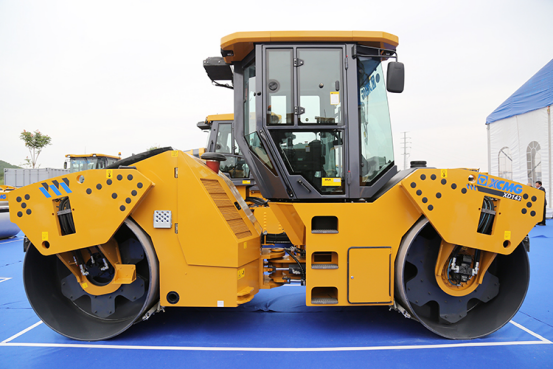

14 ton double drum vibratory compactor roller XD143

XD143 Vibratory roller is asphalt compaction machinery product which is independent researched and developed by XCMG road machinery business division based on years of experience in compaction machinery research and development. It is designed for the compaction of asphalt pavement, asphalt layer of different materials and different thickness, especially suitable for roads, parking lots, airports and other large engineering projects, can also be used for compaction of roadbed and sub-base material, wide application scope.

Performance Characteristics

* The console can rotate about 35 degrees, improving the driving comfort. * The steering wheel can adjust angle according to the need of the driver. * Control handle, display, etc. are arranged on the right side to broaden the front view. * Speed frequency management system guides the user to compaction operation. * Guiding the user to improve operation efficiency. * The vibration drum realizes the center of four-in-one combination. * Preventing the over-compaction and less-compaction.

Parameter		Unit	XD143
Weight distribution	Working weight	kg	14000
	Front wheel distribution weight		7000
	Rear wheel distribution weight		7000
Maneuverability	Speed range	km/h	0-6 / 0-12
	Theoretical gradeability	%	35
	Minimum turning radius (in/out)	mm	4800/6930
	Largest amount of crab	mm	±160
	Swing angle	°	±8°
	Steering angle	°	±35°
Compaction performance	Static linear load	N/cm	322/322
	Nominal amplitude	mm	0.35/0.85
	Vibration frequency	Hz	55/45
	Exciting force (high frequency/low frequency)	kN	98/158
Engine	rated power	kw	98
Engine	rated speed	r/min	2300

XS203J 20 ton single drum vibratory compactor

XS203J vibratory roller is a highly efficient and energy-saving super heavy machinery driven single drum vibratory roller independently developed by XCMG. This product is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, as well as the compaction of concrete and stabilized soil base materials in various large projects. It is the ideal compaction equipment for the construction of high-grade highways, airports, harbors, dams and industrial construction sites.

Model	Unit	XS203J
Operating weight	kg	20000
Load applied on front drum	kg	10000
Static linear load	N/cm	470
Travel Speed	km/h	3-9.4
Theoretical gradeability	%	30
Min. outer turning radius	mm	6500
Steering angle	°	±33
Oscillating angle	°	±10
Vibration frequency	Hz	33/28
Nominal amplitude (high/low)	mm	1.9/0.95
Exciting force (high/low)	kN	353/245
Drum width	mm	2130
Drum Diemeter	mm	1600
Engine model		Shanghai Diesel Engine SC8D175.2G2B1
Rater Power	kW	128
Engine oil consumption	g/kW.h	205
Hydraulic tank capacity	L	170
Fuel tank capacity	L	310
Dimension(LWH)	mm	622024303200

XS263 26ton single drum vibrator road roller

XS263 vibratory roller is a highly efficient and energy-saving super heavy machinery driven single drum vibratory roller independently developed by XCMG. This product is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, as well as the compaction of concrete and stabilized soil base materials in various large projects. It is the ideal compaction equipment for the construction of high-grade highways, airports, harbors, dams and industrial construction sites.

Type	Unit	XS263
Operating weight	kg	26000
Load on front drum	kg	17000
Load on rear wheels	kg	9000
Static linear load	N/cm	784
Vibration frequency(Low/High)	Hz	32/27
Nominal amplitude(High/Low)	mm	0.95/1.9
Excitation force(High/Low)	KN	300/410
Travel speed	km/h	0~10.6
Steering angle	°	±33
Swing angle	°	±12
Theoretical gradeability	%	50
Min. external turning radius	mm	6800
Engine power	kw	162
Rated engine speed	r/min	2000

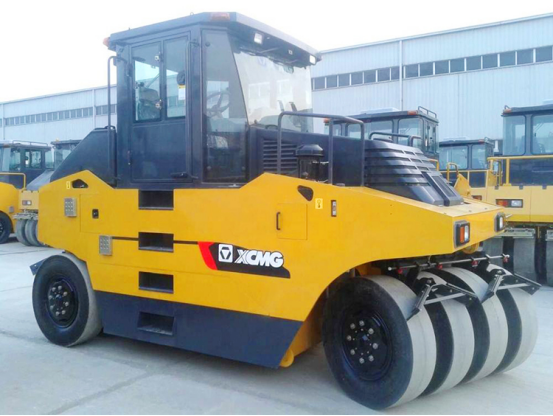

16 ton pneumatic roller XP163 tire road roller

XP163 pneumatic tire roller is self-propelled static roller, which is applicable to compacted asphalt pavement, foundation layer, secondary foundation layer and flling engineering and is the indispensable compaction equipment of road construction and water conservancy construction. In particular, compaction of asphalt surface course of highways can obtain compaction effect that other compaction machinery cannot reach.

Item		Unit	XP163
Maximum operating mass		kg	16000
Ground pressure		kPa	150~ 300
Travel speed	Gear I	km/h	4
	Gear II	km/h	8.3
	Gear II	km/h	17.5
Theoretical gradeability		%	20
Minimum turning radius		mm	7330
Minimum ground clearance		mm	260
Compaction width		mm	2250
Overlapped volume of roller		mm	45
Tires	Specification		11.00-20
Tires	Quantity		Front 4 rear 5
Engine	Type		SC4H115.4G2B
	Rated power	kw	86
	Fuel consumption	g/kw.h	≤205
Total length		mm	4800
Total width		mm	2356
Total height		mm	3330
Diesel tank volume		L	150
Water tank volume		L	650

30 ton Road Roller Compactor XP303

XP303 pneumatic tire roller is a large-tonnage pneumatic tire roller produced according to market requirements, which will take pneumatic tires as working device for compacting paved materials. The pneumatic tire roller is mainly applicable for compacting operation of asphalt pavement, foundation layer, secondary foundation layer, dam and flling engineering. It is an ideal set of compacting equipment for building high grade highway, airport, port, dam and industrial construction site.

Item		Unit	XP303
Maximum operating mass		kg	30300
Compaction width		mm	2360
Overlapping of tyres		mm	65
Ground pressure		kPa	200-545
Minimum turning radius		mm	7620
Swing quantity of front wheel		mm	50
Minimum ground clearance		mm	300
Theoretical gradeability		%	20
Wheel base		mm	3840
Travel speed	Gear I	km/h	0-8
Travel speed	Gear II	km/h	0-17
Engine	Type	-	SC7H180.2G3
	Rated power	kw	132
	Rated speed	r/min	1800
	Rated fuel consumption rate	g/kw.h	≤233
Tyre specification		-	13/80-20
Tyre tread pattern		-	Smooth tread
Number of tyres		-	Front4 rear 5
Length(standard water sprinkler)		mm	4925
Length(standard oil sprinkler)		mm	5015
Width		mm	2530
Height		mm	3470
Diesel tank volume		L	170
Water tank volume		L	650
