2 Ton To 25 Ton truck mounted crane straight and folding arm

Short Description:

We supply 1 ton to 25 ton straight arm or folding arm truck mounted crane. Including SQ1ZK2Q, SQ2ZK1, SQ3.2ZK1/K2, SQ4ZK2Q, SQ5ZK2Q/3Q, SQ6.3ZK2Q, SQ8ZK3Q, SQ10ZK3Q, SQ12ZK3Q, SQ14ZK4Q,SQ16ZK4Q, SQ2SK2Q, SQ3.2SK1/K2, SQ4SK2Q/3Q, SQ5SK2Q/3Q, SQ6.3SK2Q/3Q, SQ8SK2Q/3Q, SQ10SK3Q, SQ12SK3Q, SQ14SK4Q, SQ16SK4Q,SQ18SK5Q, SQ20SK5Q, SQS series, SQZ series, etc.

Send email to us

Product Detail

Product Tags

products description

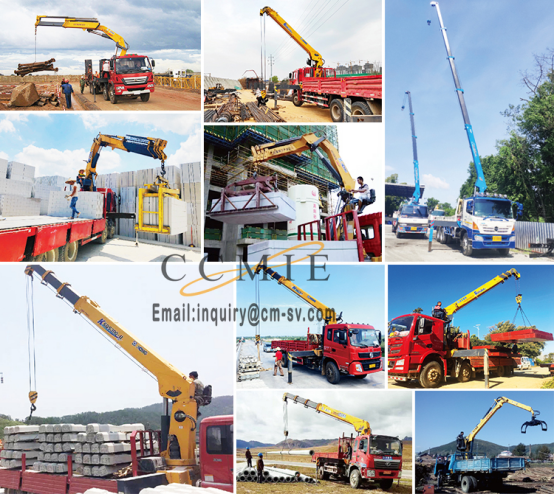

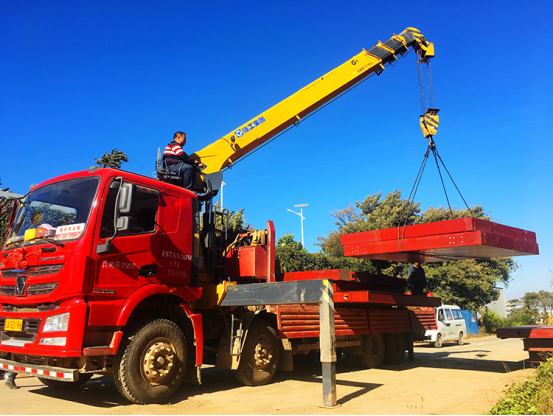

The truck-mounted crane is widely used in the hoisting and transportation of infrastructure materials and other equipment such as municipal construction, coal mine engineering, and landscaping. The truck-mounted crane can be operated left and right, it can rotate 360 degrees forwards and backwards, and can also rotate in all directions. It adopts military quality production, reliable quality, long life and fast working speed. Related models are 2 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, 18 tons, 20 tons , 25 tons, 30 tons, 80 tons, 140 tons, cranes are available, you can choose straight arm or folding arm crane. A truck with crane is a type of transportation vehicle that combines a truck with a crane and a chassis. It is composed of boom, turntable, frame, outrigger and other parts. The mechanical action of the truck crane is realized through the actions of luffing, telescoping, turning, hoisting and other mechanisms, and the lifting operation is realized through the combination of different actions.

1,Throttle Control System
Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.

2, End position automatic hook device
Maximum savings in preparation time before and after operation, to ensure that customer’s vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.

3, Hoisting overwinder device
If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope.

4, Slewing locking device
Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.

5, Dual pump converging
The hydraulic system adopts dual high pressure gear pump, multi-way valve hoisting joint to realize the converging, to improve the speed of winch, at the same time, it can realize the compound action of crane.

6, Torque limiter
It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.

performance characteristics

1. Warning system: while loader crane working, the caution light on the leg keep shining to remind the people and vehicle around. Avoid accident and ensure safety.

2. Stabilizer extension: single cavity nesting structure not only ensure the leg span but also reduced the installation space and crane weight.

3. Leveling mechanism of extension cylinder: this mechanism can carry out level regulation for extension cylinder, avoid the phenomenon of cylinder is not parallel to boom which arising from machining error of boom or structure distortion after long-term work, improve product external appearance and stress on the cylinder.

4. Large angle rack cylinder rotation: rack cylinder rotation, easy to repair and maintain, more economical and practical , rotation angle can reach to 420 °.

main specifications

SQ10SK3Q

Item	Units	SQ10SK3Q
Max lifting capacity	kg	10000
Max lifting capacity	T.m	25
Recommend power	kW	30
Max oil flow	L/min	63
Max pressure	mpa	26
Oil Tank Capacity	L	160
Crane weight	kg	3800
Installation space	mm	1150
Rotation angle	degree	360
Max extension length	mm	12000
Max lifting height	mm	12500

SQ5ZK3Q

Item	Unit	SQ5ZK3Q
Max Lifting Capacity	kg	5000
Max Lifting Moment	t.m	10.5
Recommend Power	kw	18
Max Oil Flow of Hydraulic System	L/min	25
Max Pressure of Hydraulic System	Mpa	28
Oil Tank Capacity	L	90
Crance Weight	kg	2117
Installation Space	mm	1050
Rotation Angle	°	360°All Rotaion

SQ10ZK3Q

ITEM	UNITS	SQ10ZK3Q
Max lifting capacity	KG	10000
Max lifting capacity	T.M	20
Recommend power	KW	28
Max oil flow	L/MIN	40
Max pressure	MPA	30
Oil Tank Capacity	L	160
Crane weight	KG	3477
Installation space	MM	1150
Rotation angle	DEGREE	360
Extension length	MM	9755
Lifting height	MM	12000
Max elevation	DEGREE	75

SQ8ZK3Q

Item	Unit	SQ8ZK3Q
Max Lifting Capacity	kg	8000
Max Lifting Moment	t.m	16
Recommend Power	kw	28
Max Oil Flow of Hydraulic System	L/min	40
Max Pressure of Hydraulic System	Mpa	28
Oil Tank Capacity	L	160
Crance Weight	kg	2970
Installation Space	mm	1150
Rotation Angle	°	360°All Rotaion

SQ5SK3Q

Item	Unit	SQ5SK3Q
Max lifting capacity	KG	5000
Max lifting capacity	T.M	12.5
Recommend power	KW	18
Max oil flow	L/MIN	32
Max pressure	MPA	20
Oil Tank Capacity	L	90
Crane weight	KG	2215
Installation space	MM	900
Rotation angle	DEGREE	360 All Rotation
Max extension length	MM	11000
Max lifting height	MM	12000
Max elevation	DEGREE	75

*We supply 1 ton to 25 ton straight arm or folding arm truck mounted crane. Including SQ1ZK2Q, SQ2ZK1, SQ3.2ZK1/K2, SQ4ZK2Q, SQ5ZK2Q/3Q, SQ6.3ZK2Q, SQ8ZK3Q, SQ10ZK3Q, SQ12ZK3Q, SQ14ZK4Q,SQ16ZK4Q, SQ2SK2Q, SQ3.2SK1/K2, SQ4SK2Q/3Q, SQ5SK2Q/3Q, SQ6.3SK2Q/3Q, SQ8SK2Q/3Q, SQ10SK3Q, SQ12SK3Q, SQ14SK4Q, SQ16SK4Q,SQ18SK5Q, SQ20SK5Q, SQS series, SQZ series, etc.

If you would to know more, please contact us!
