XCMG backhoe loader farm tractor with front end loader

Short Description:

New multi-function engineering machine which gathering the loading and excavating in the integral whole machine. It is the new generation model of the development based on the same kind product technique in domestic and international. Having adopted four wheel drive, hydraulic torque conberter, hydraulic streering system, hydrulic.

Send email to us

Product Detail

Product Tags

product description

The backhoe loader is a single device composed of three construction equipment. Commonly known as “busy at both ends”. During construction, the operator only needs to turn the seat to change the working end. The main work of the backhoe loader is to dig ditches in order to arrange pipes and underground cables, to lay the foundation for the building and to establish a drainage system.

product parameters

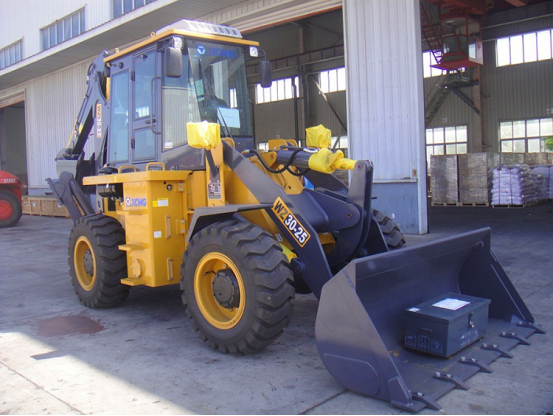

XCMG WZ30-25 backhoe loader

The WZ30-25 is a new multi-function engineering machine which gathering the loading and excavating in the integral whole machine. It is the new generation model of the development based on the same kind product technique in domestic and international. Having adopted four wheel drive, hydraulic torque conberter, hydraulic streering system, hydrulic.

It is extensively used in the roadmaintenance, farml and developments, getting clay for making brckiln, piping builds, the cable builds, park virescence and the excavating of the road opens to dig, broking up etc.

1. The Yucai engine

Low noise, low exhaust gas, low west, green environmental protection, driving motive, good reliability. The spirit valve control take type brake system and parking brake system move two unite as one, when there is trouble in the gas brake system, it can make intime brake automatically,so it is more safety.

2. Humanization designs

The hand handle layout reasonable, manipulating is portable;steer device, gauge dish and the chair all can be adjusted in up-down and front-back directions according to your sense, so it is comfortable. The back wheel bridge can swing up and down round the cancer, it make wheels has well cling, so the machine has good span and cross capability.

3. Optimized load work device

Reasonable joint layout,dependable position limit function. Lavelling bucket automati-cally in unload position, lacenning labor intensity,and the work range is larger, workfore is more study and steady, the work efficiency is higher.

Optional parts:
4 in 1 bucket/ hammers/ Snow plough/ Augers

Description	Unit	Parameter value
Bucket capacity(heaped)	m³	1
Digger capacity	m³	0.3
Dumping clearance	mm	2650
Dumping reach	mm	930
Max.steering angle	°	±35
Max.steering angle of dig working device	°	±85
Traceing speed I / II / III / IV	km/h	0-6.2 / 0-12 / 0-20 / 0-30
Back I / II speed	km/h	0-8 / 0-28.5
Diesel Model		YC4A110-T310/YC41390-T20
Modality		4-stroke water-cooled inline type/4-stroke water-cooled inline type
Rated power	kW	73.5 (Turbocharged)/65
Rated speed	r/min	2200
Wheel base	mm	2600
Tread	mm	1700
Tires		16/70-24
Max.digging depth	mm	4400
Max.digging radium	mm	5471
Overall dimensions(L×W×H)	mm	8000×2310×3424
Operating weight	kg	9500

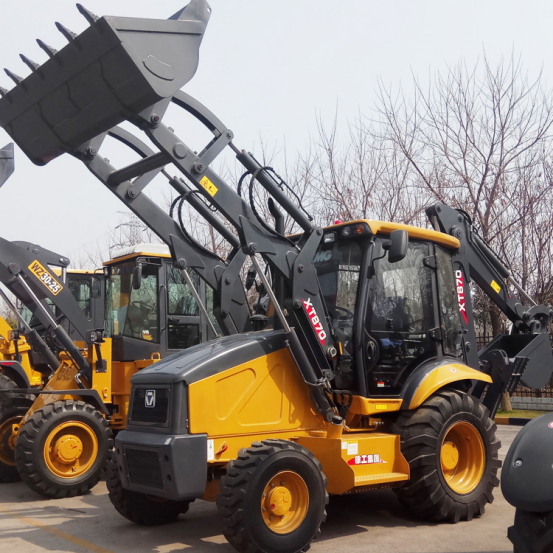

XCMG XT870 2.5ton compact tractor backhoe loader

XT870 backhoe loader is one kind of multifunctional construction machinery that integrates the digging and loading and is applicable for multiple operations, including digging, loadering, handing, and land grading. It can also be fitted with the attachments, including manhole cover planer, four-in-one bucket, snow shovel, and breaking hammer, to meet multiple working needs.

Optional parts

4 in 1 bucket/ Soonsan and Chinese brand hydraulic hammer/ clamping device

Chassis type	integrated	Unit
Total weight	8100	kg
Overall dimensions (LxWxH)	740023503450	mm
Max. travel speed	40	Km/h
Max. gradient	20	°
Wheel base	2180	mm
Turning radius	3350	mm
Max. traction force	70	kN
Power	70	Kw
Bucket capacity	1	m³
Rated load	2500	kg
Max. breakout	66	kN
Max. discharge height	2770	mm
Max. discharge distance	705	mm
Boom lifting time	≤5	s
Total cycle time	≤10	s
System pressure	24	Mpa
Bucket capacity	0.3	m³
Max. digging radius	5500	mm
Max. digging depth	4250	mm
Max. digging force	51	kN
System pressure	24	Mpa

XCMG XC870K Backhoe Loader

XC870K is a K series backhoe loader newly launched by XCMG. This product is upgraded on the basis of the mature equipment and technical performances of present products, including the upgrade of engine emission, lightweight upgrade of structural parts, and optimization of working device parameters, to further improve the comfort, safety, maintainability, reliabilit, supportability, and economy of the product.

* The highest breakout force on the loading end is leading the industry by 15%~ 20% compared with like models. The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.

* The high strength structural design features high operation efficiency, with the breakout force up to 63kN.

* The design optimized and industry leading 8-link working device features good levelness of bucket and rapid operations.

* The ultra-high discharge height (2770mm) and ultra-high breakout force (66kN) lead the like products.

* The 360° panoramic view luxury cab with air conditioning system features large space, good sound and heat insulation, and good shock absorption. With openable side windows and rear window, the cab realizes broader visual field and comfortable operations.

Description		Parameter Value				Unit
Chassis type		integrated
Drive style		4 drive/2 drive
Digging working device		middle
Outline dimensions(L×W×H)		7440×2350×3450				mm
Total weight		7600				kg
Max. travel speed		≥40				km/h
Wheelbase		2180				mm
Engine	Power	82	74	74.9	70	kw
	Supplier	tier 3	tier 2	tier 3	tier 2
Loading device	Bucket capacity	1				m3
	Rated load	2500				kg
	Max. breakout	66				kN
	Max. discharge height	2770				mm
	Max. discharge distance	755				mm
	System pressure	24				Mpa
Digging device	Bucket capacity	0.3				m3
	Max. digging radius	5460				mm
	Max. digging depth	4425				mm
	Max. digging force	63				kN
	System pressure	24				Mpa
