XCMG 4m to 13m RP series road asphalt paver machine
product description

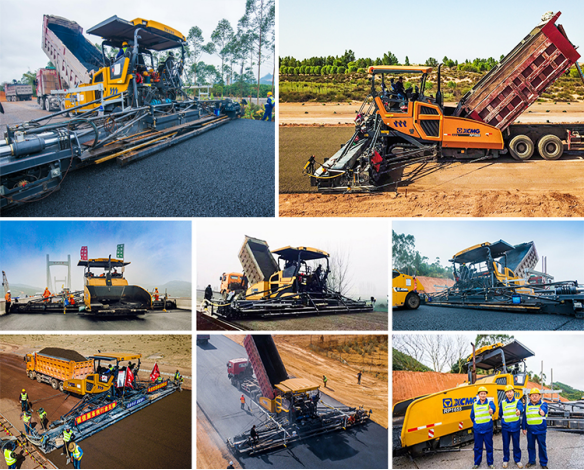

Road asphalt paver is a kind of construction equipment mainly used for paving various materials on the base and surface layers of expressways. The paving work is completed by the cooperation of various systems, mainly including the walking system, the hydraulic system, the conveying and distributing system, and so on.
details information
XCMG RP403 asphalt pavers
The RP403 paver is the first full-hydraulic small crawler asphalt paver in China. The whole machine adopts full hydraulic drive and electro-hydraulic automatic control, advanced technology and reliable performance.
The minimum width of the whole machine is only 1.8 meter, which is the smallest among domestic products. Due to its compact shape, it is widely used in large scale paving, including sidewalks, bike lanes, farm roads and small roads.
The paving width can be stepless adjusted from 0.8 meters (if installed with width limit device) to 4.5 meters, and is especially suitable for the maintenance of roads.
* The machine is miniaturized, and the super small width of 1.8m fufills the construction work of the urban area and the roadway; Install the limited-width device, the minimum paving width of 0.8m, to be applied to the paving construction of ”grooves”.
* Configured with Deutz water-cooled turbocharged diesel engine, sufficient power reserve, good atomization of diesel, good economic performance, low noise, long life and wide application scope.
* The powerful three phase alternator generator with management system, controls the power output of the corresponding paving width, can heat the screed to the working temperature in a very short time.
* The generator adopts independent driving technology, which can be tumned on according to the working requirements, which improves the ut7z%ion rate of the generator, increases the reliability of the components, and saves energy.
* The hydraulic system adopts the load sensing control technology to make the power output efficient and energy saving. The drive element is imported German Rexroth, which guarantees the system reliability.
* The hopper of 12t is designed to be wide, and can always store enough materials. The material interface is suitable for the skip car of different tonnage.
* The two sides of the hopper can be folded separately, the swing type pusher, ensuring the stable material discharge during asymmetric paving. Ensure the normal paving of obstacles along the wall.
| ltem | Unit | RP403 |
| Basic Pave Width | m | 1.8~3.4 |
| Maximum Pave Width | m | 4.5 |
| Maximum L ayer Thickness | mm | 260 |
| Maximum Paving Speed | m/min | 30 |
| Maximum Travel Speed | km/h | 3.6 |
| Hopper Capacity | t | 12 |
| Maximum L aydown Rate | t/h | 300 |
| Engine and Type | - | BF4M2012 |
| Rated Power | kW/rpm | 75/2000 |
| Shipping Dimension (LxWxH) | mm | 5581*1800*3152 |
| Shipping Weight | t | 11.5 |
| Full Dimension (LxWxH) | mm | 558*1800*3629 |
| Full Weight | t | 12 |
XCMG 6m Width RP600
Reinforced caterpillar device with large grounding area, feed material level is controlled by contact-type material shot, the material level is controlled by non-contact ultrasonic sensor, and spray control adopts touch screen operation.
Standard centralized lubrication system with pulsed spray system allows emulsified asphalt spray and mix paving to be synchronized. The five-section sprayer has compact structure, reasonable arrangement, high spraying precision, good uniformity of horizontal and vertical spraying, and fully meets the requirements of high-grade highway construction.
2200L large-capacity asphalt tank with integrated asphalt pump, spray control handle, emergency heating channel and constant temperature heating device, and has an overhaul access, which can provide a longer continuous construction distance and convenient operation and maintenance. Equipped with electronically controlled diesel sprayer, easy to use.
| Item | RP600 |
| Dimension | 7780×3000×3985 |
| Weight | 27.5-28.3t |
| Driving speed | 3.3km/h |
| Basic pave width | 3.0-5.85m |
| Maximum pave width | 5.85m |
| Maximum layer thickness | 200mm |
| Maximum paving speed | 20m/min |
| Hopper capacity | 13t |
| Maximum laydown rate | 500t/h |
| Rate power | 159/2000 kw/rpm |
XCMG pave width 7.5m RP753
Drive left and right independent drive, microcomputer control, constant speed automatic control technology for paving speed, SC7H190 water-cooled supercharged engine of Shangchai (optional Deutz engine BF6M2012).
Using a three in-one powerful composite radiator, left and right transmission, and material distribution four sets of independent hydraulic system transmissions, high wear-resistant alloy material for the material-discharging blades, imported wear-resistant steel plate for the feeding floor and the screed bottom plate, and the left and right material-dispensing devices can be easily moved up and down to accommodate different paving thicknesses. A horizontal automatic leveling system ensures the flatness of the paving. Centralized lubrication system.
| Item | RP753 |
| Dimension | 6545×2880×4000mm |
| Weight | 18.7-25t |
| Driving speed | 3km/h |
| Basic pave width | 2.5-7.5m |
| Maximum pave width | 7.5m |
| Maximum layer thickness | 350mm |
| Maximum paving speed | 20m/min |
| Hopper capacity | 14t |
| Maximum laydown rate | 600t/h |
| Rate power | 140/2000 kw/rpm |
XCMG pave width 8m RP803
Centralized lubrication system, use of advanced mature and reliable Shangchai new generation of four-valve SC7H water-cooled engine, powerful power, low fuel consumption. Dividing blades use highly wear-resistant alloy material. The console can intuitively display various work functions, paving, driving speed, and can be installed around. The machine has a high degree of automation, simple and convenient operation, high operating efficiency.
| Item | RP803 |
| dimension | 6680×3000×4000 |
| Weight | 19-23.7t |
| Driving speed | 0-3Km/h |
| Basic pave width | 3-8m |
| Maximum pave width | 8m |
| Maximum layer thickness | 350mm |
| Maximum paving speed | 20m/min |
| Hopper capacity | 14t |
| Maximum laydown rate | 600t/h |
| Rate power | 140/2000 kw/rpm |
XCMG pave width 9.5m RP953
RP953 paver is the leading model of XCMG’s 3 series large pavers. Featuring outstanding quality, high cost-performance, and extraordinary working efficiency, this product is a construction equipment that can be extensively applied for the paving of expressway road-bases and the classified highway pavements. lts reliability and working performance reach the leading level of similar products at home and abroad, it is an ideal equipment for paving foundation stabilized materials and asphalt layer materials.
| ltem | Unit | RP953 |
| Basic Pave Width | m | 2.5 |
| Maximum Pave Width | m | 10.5 |
| Maximum Layer Thickness | mm | 400 |
| Maximum Paving Speed | m/min | 18 |
| Maximum Travel Speed | km/h | 3 |
| Hopper Capacity | t | 15 |
| Maximum Laydown Rate | t/h | 900 |
| Engine and Type | - | SC9DK |
| Rated Power | kW/rpm | 162/2000 |
| Shipping Dimension (LxWxH) | mm | 6840*2780*3160 |
| Shipping Weight | t | 22 |
| Full Dimension (LxWxH) | mm | 6840*2780*3950 |
| Full Weight | t | 31.5 |
XCMG RP1253 12.5m
| Item | Parameters | Unit |
| Max. paving width | 4.5 | m |
| Max. paving thickness | 200 | mm |
| Theoretical productivity capacity | 300 | t/h |
| Engine model | BF4M2012C | |
| Engine power | 75 | kw |
| Screed heating | Gas heating | |
| Running speed | 0-3.6 | km/h |
We supply 4m to 13m asphalt pavers, including RP403, RP452L, RP453L, RP600, RP603, RP603L, RP753, RP802, RP803, RP903, RP903S, RP1253, RP1356, etc.
If you would like to know more about our products, please contact us!
